VisuNet FLX System
Electrical Installation
5.2 Equipotential Bonding
When installing the VisuNet FLX system, always ensure that all components are properly con-
nected with equipotential bonding (PB), including housing and mounting parts (e.g., pedestal
and wall bracket) with a cable diameter of at least 4 mm
2
(~12-24 AWG) in accordance with
IEC 60079-14.

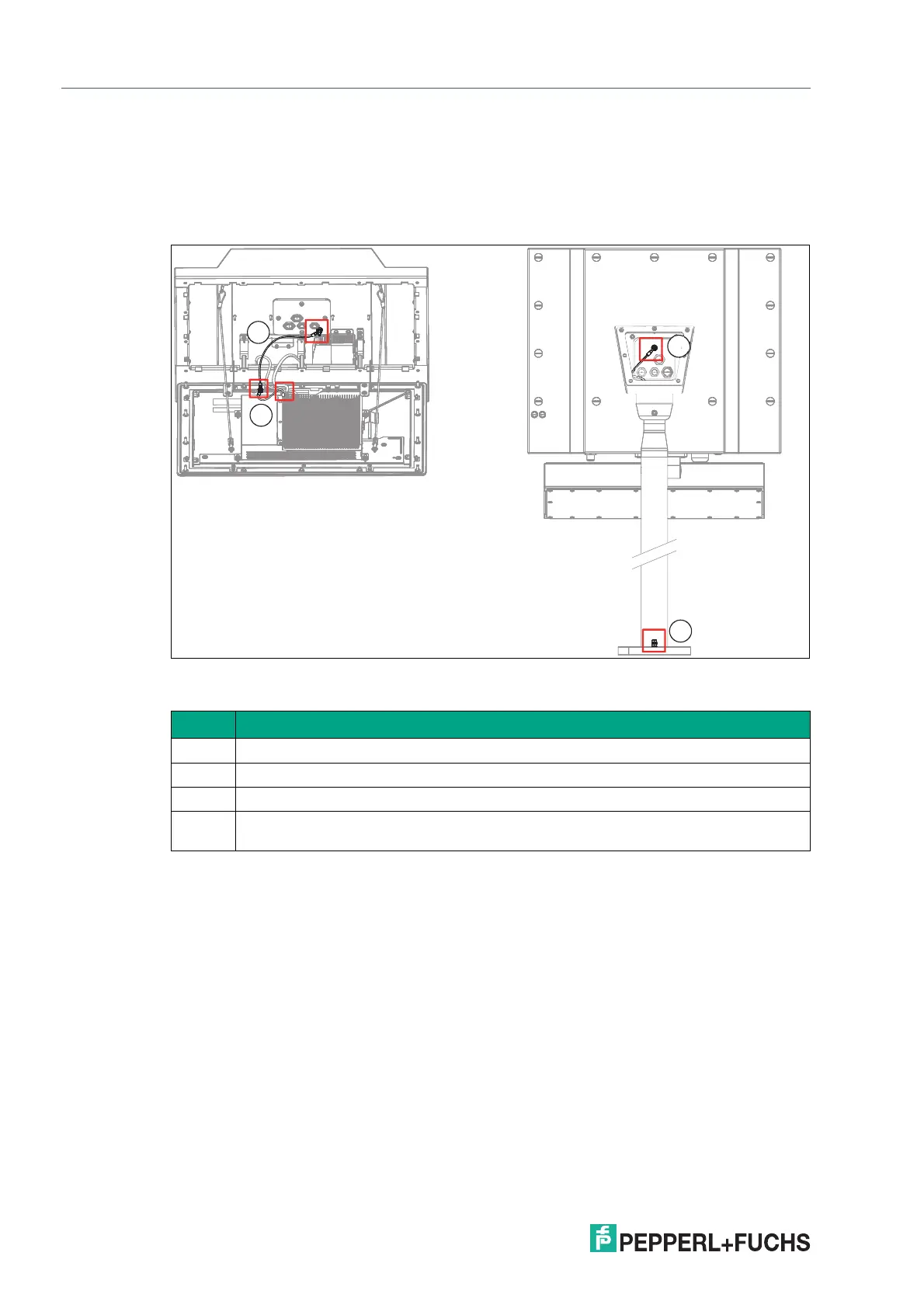

Figure 5.1
No. Description
(1) Preinstalled PB wire from adapter plate to the lens head screw of the panel
(2) Preinstalled PB wire from computing unit to the lens head screw of the panel
(3) Pedestal with preinstalled equipotential bonding cable.
(4) Vertical stand provides on the base plate a grub screw for the connection of an equi-
potential bonding conductor
To Next Page
