10 Appendix

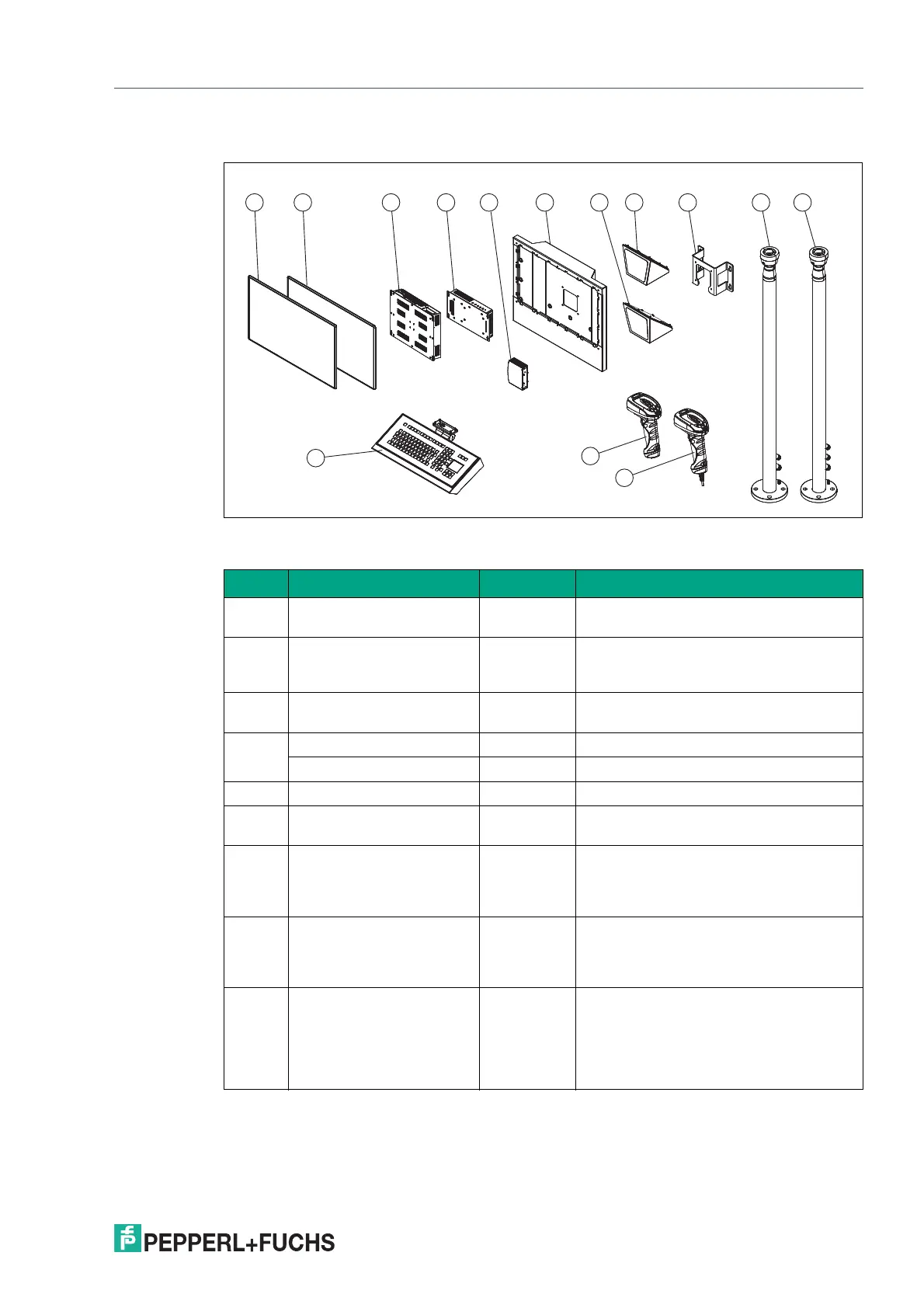

Figure 10.1 VisuNet FLX System - possible configurations
Spare Parts
No. Typ e co de Item No. Description
(1) DPU3200-22GT-304A-V1-
N0
70128300 21.5" Display (Full HD) - Display option
"22GT" with capacitive touch screen
(2) DPU3200-22FC-304A-V1-
N0
70128301 21.5" Display (Full HD), optically bonded
- Display option "22FC" with capacitive
touch screen
(3) BPC3200-* must be con-
figured
available as thin client or PC configura-
tion
(4) DMU3200-22GT-V1-N0 70128304 Compatible with display N° 1
DMU3200-22FC-V1-N0 70128305 Compatible with display N° 2
(5) PS1000-A6-24.5 70103517 AC power supply Option
(6) SPAREPART-AG-320S-
BP-P1
TBD Spare part housing with 0.8-μm surface
- SPAREPART-AG-320S-
BP-H1
70136528 Spare part housing blind plugs Standard
- 15x M20 Ex-rated blind plugs for hous-
ing
- Material: Nickel-plated brass
- SPAREPART-AG-320S-
SPACERS
70136527 Spare part housing spacers &- 6x M5x80
mm & 8x M5x25 mm
- spacer nuts to affix display unit in enclo-
sure
- SPAREPART-AG-320S-
BP-P1
70136529 Spare part housing blind plugs - GMP
- 15x M16 Ex-rated blind plugs for hous-
ing
- 2x M5 GMP screws for mounting scan-
ner holder
- Material: Stainless Steel
21 3 4
12
5 6 7 8 9 1110
13
14
