VisuNet FLX System
Installing Peripherals
2023-11
85
7.2 Installing the IDM Zone 2/22 Barcode Reader
Mounting the IDM-* Barcode Reader Holder Bracket
SCANNER-HOLDER-U1-3200-N0 is a holder for the IDM-* handheld barcode reader family.
The holder is compatible with the VisuNet FLX housing.
Required Components
• VisuNet FLX pre-assembled in AG-3200 housing with adapterADAPTER-3200-10-304B-
M12
• SCANNER-HOLDER-U1-3200-N0 (#70129840screws included) or HOLDER-BRACKET-
3200-IDMx61-B-N (#70129841)
Required Installation Tools
• Size 8-socket wrench for housing screws
• 3-mm hex wrench for scanner holder screws
All tools should be torque controlled if a torque is specified.

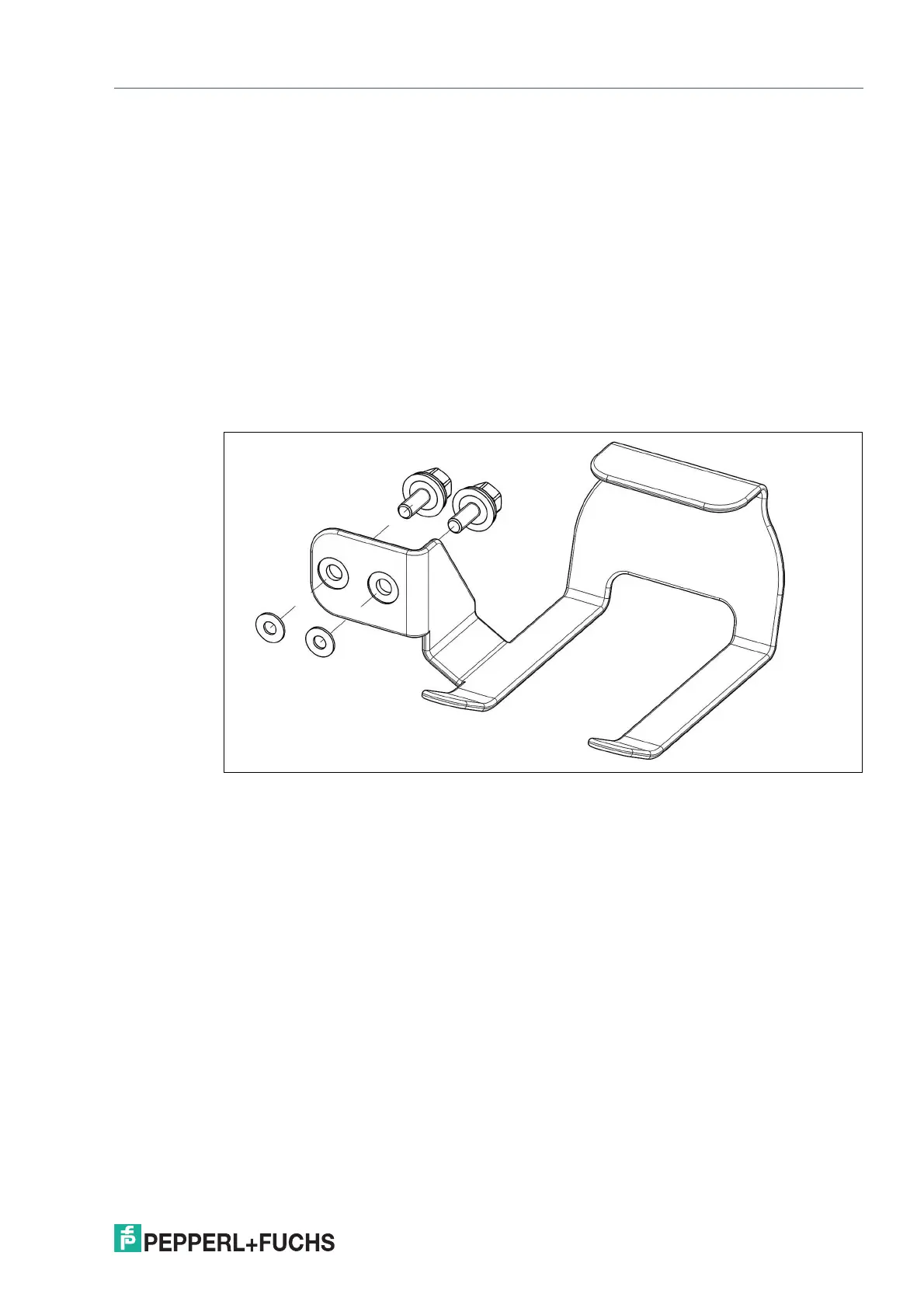

Figure 7.4
To Next Page
