Pepperl+Fuchs VisuNet FLX System - Connecting the AC Power Supply

VisuNet FLX System
Electrical Installation
2023-11
77

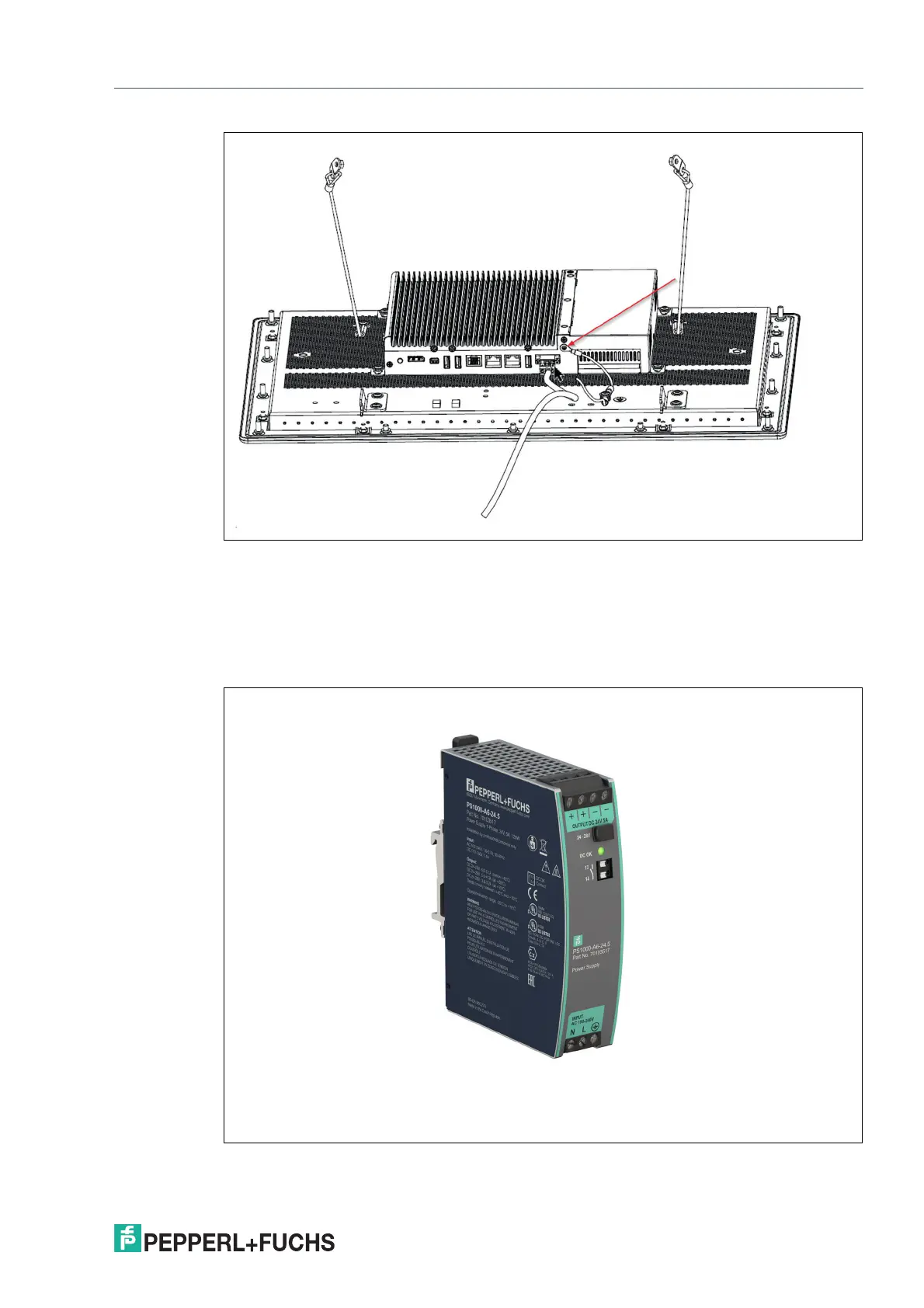

Figure 5.9
5.3.2 Connecting the AC Power Supply
If the VisuNet FLX is configured with AC/DC power supply, the Power supply unit is preinstalled
in the system.
AC-Power Supply
Figure 5.10 PS1000-A6-24.5
