2023-11
68
VisuNet FLX System
Mechanical Installation

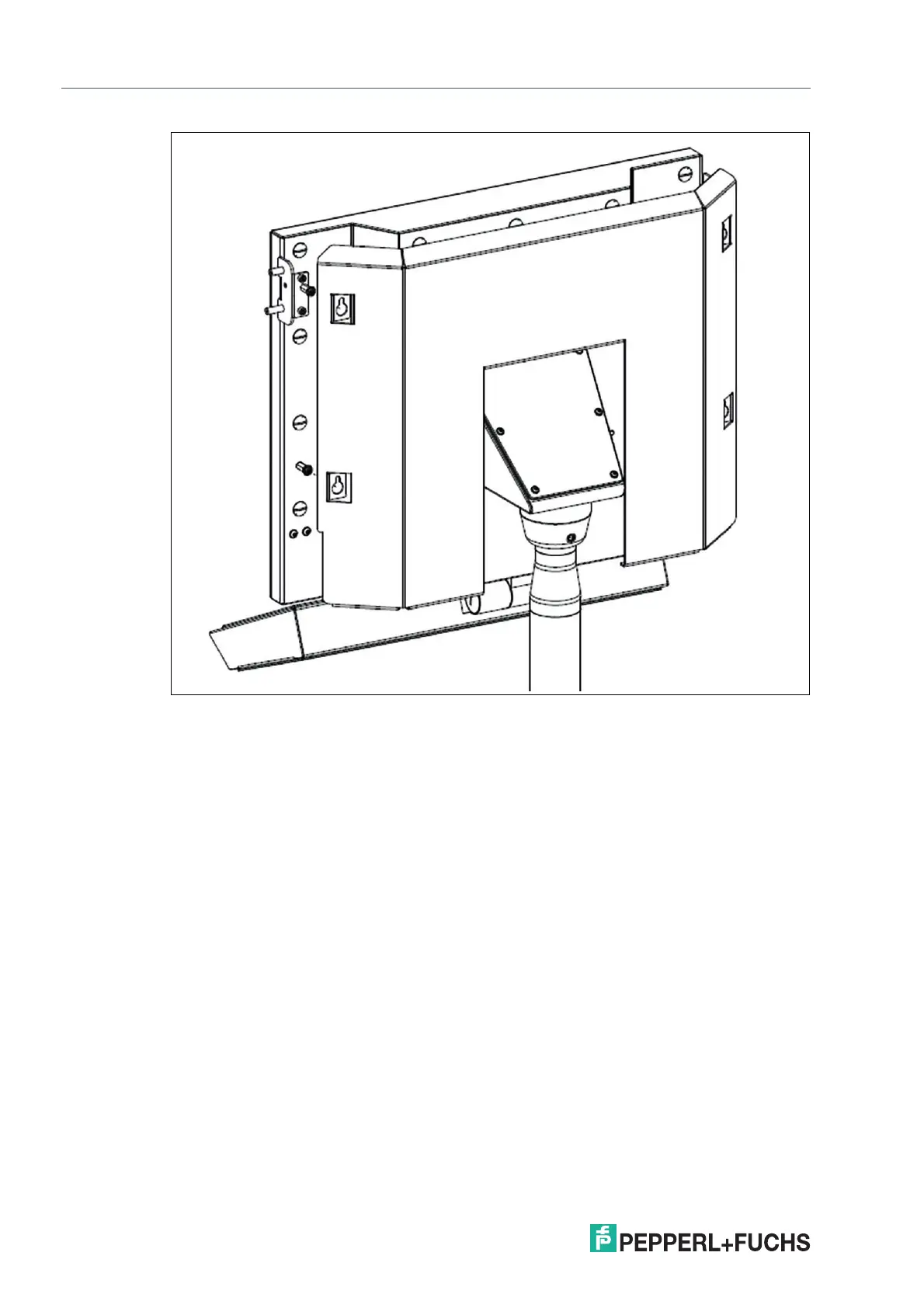

Figure 4.48
7. Tighten the 4 screws to a torque of 2.3 Nm.
8. The back sunshield assembly is now complete.
