VisuNet FLX System
Mechanical Installation

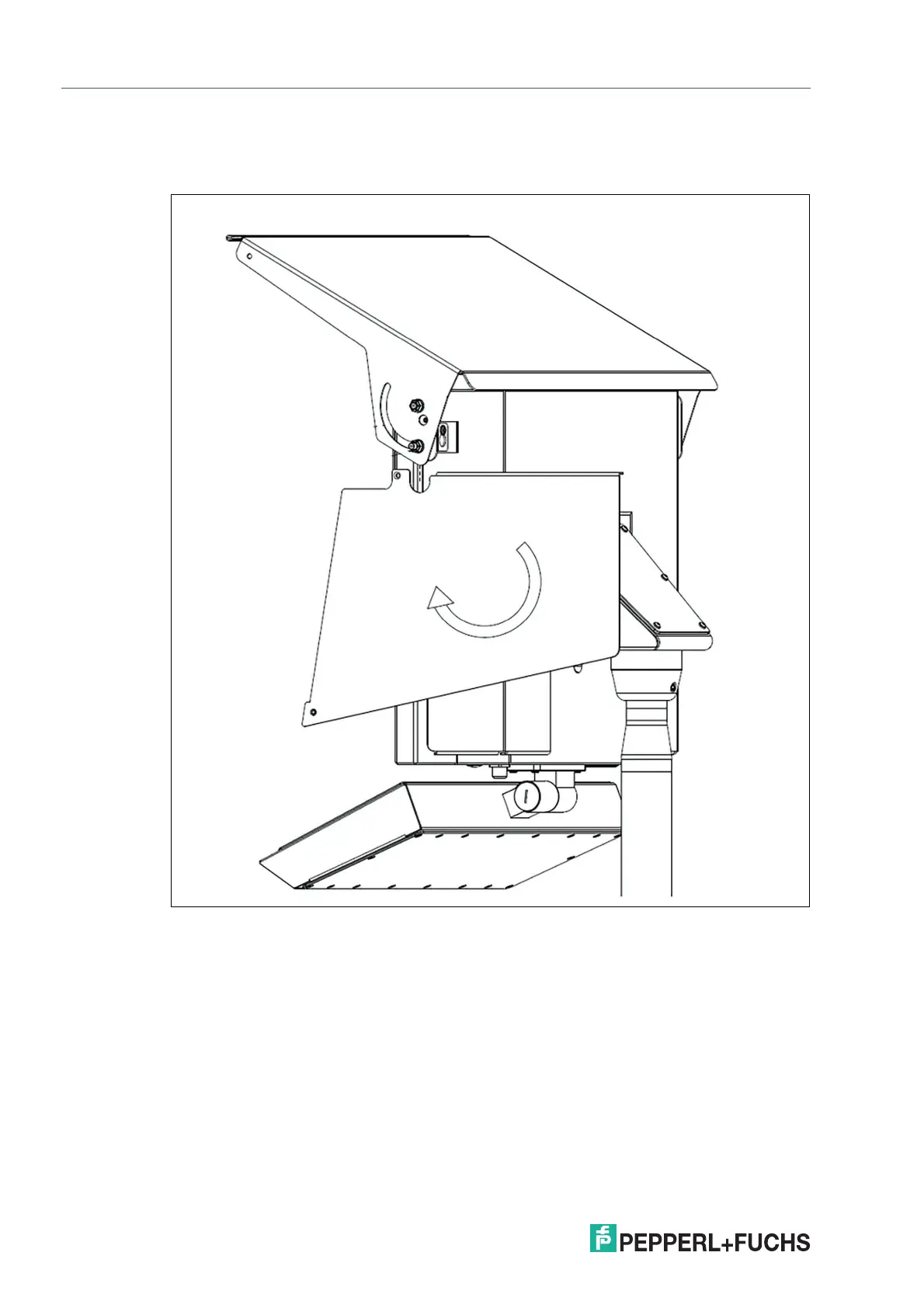

13. Position the right sideshield as shown by sliding into position between the top sunshield and
the right mounting bracket. Rotate the side sunshield clockwise until the holes are aligned with
the screw threads on the mounting brackets.
Figure 4.46
14. Install one flat head screw on the side and one button head on the back.
15. Tighten both screws to a torque of 2.3 Nm.
16. Repeat the process with the left side shield.
17. Loosen side nuts in slotted holes slightly and rotate the top shield down until the front corner
holes are aligned with screw thread on the side shields.
18. Install 2 M5x8 Torx button head screws the front corners of the sunshield.
19. Tighten both screws to a torque of 2.3 Nm.
20. The sunshield (top + back + sides) assembly is now complete.
