VisuNet FLX System
Mechanical Installation

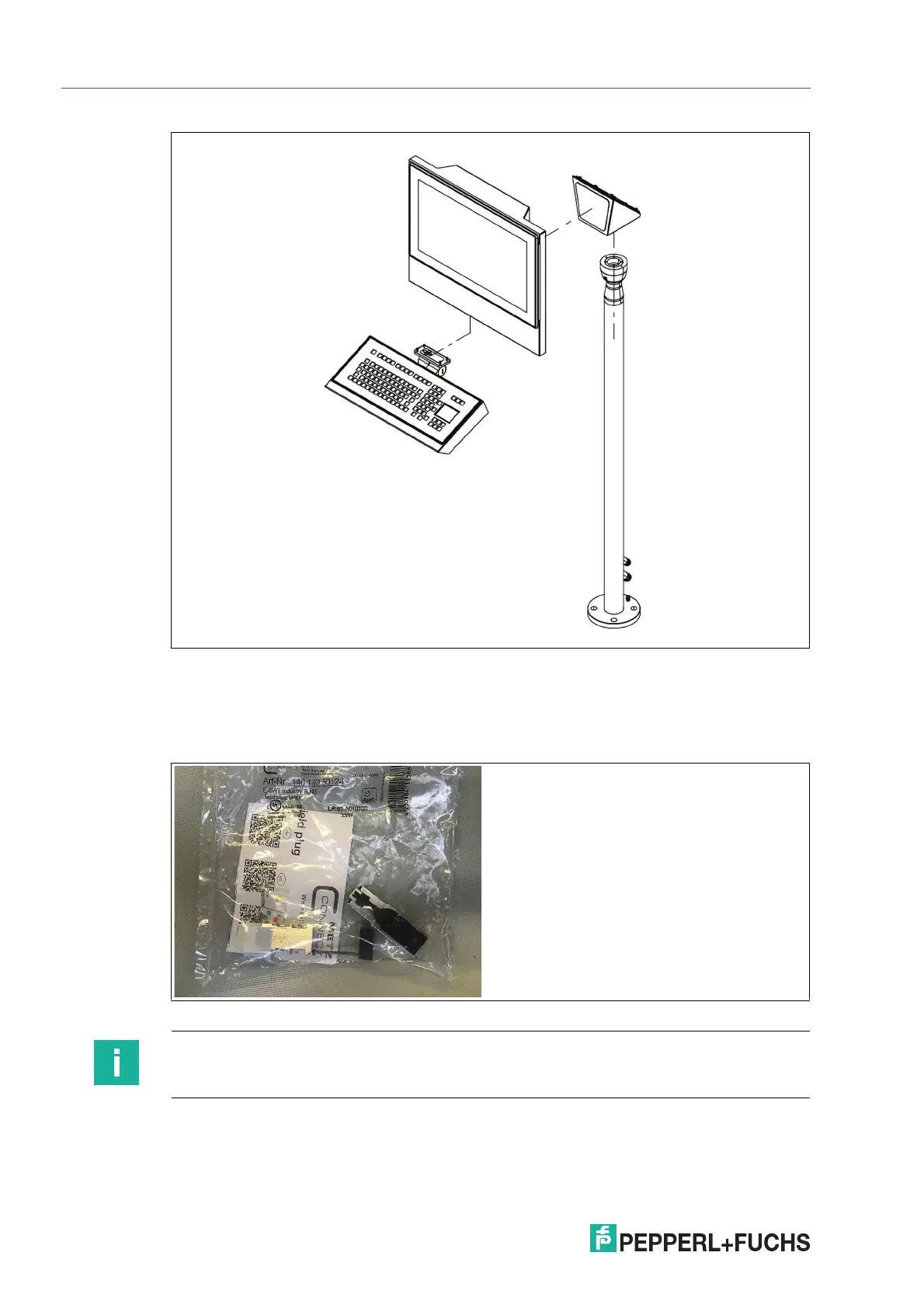

Figure 4.1 Adapter, pedestal and peripherals as keyboard must be ordered separately
Included with Delivery
• Preassembled VisuNet RM-, PC- or DM- FLX System, pre-mounted into AG-3200-* hous-
ing
• 1x Field Connector RJ45 (must be assembled by customer)
Figure 4.2 Field Connector RJ45
Note
Refer to the documentation of the supplier on how to mount the RJ45 Field Plug Pro: Link
