1. Pre-assemble the top sunshield as shown in the figure.

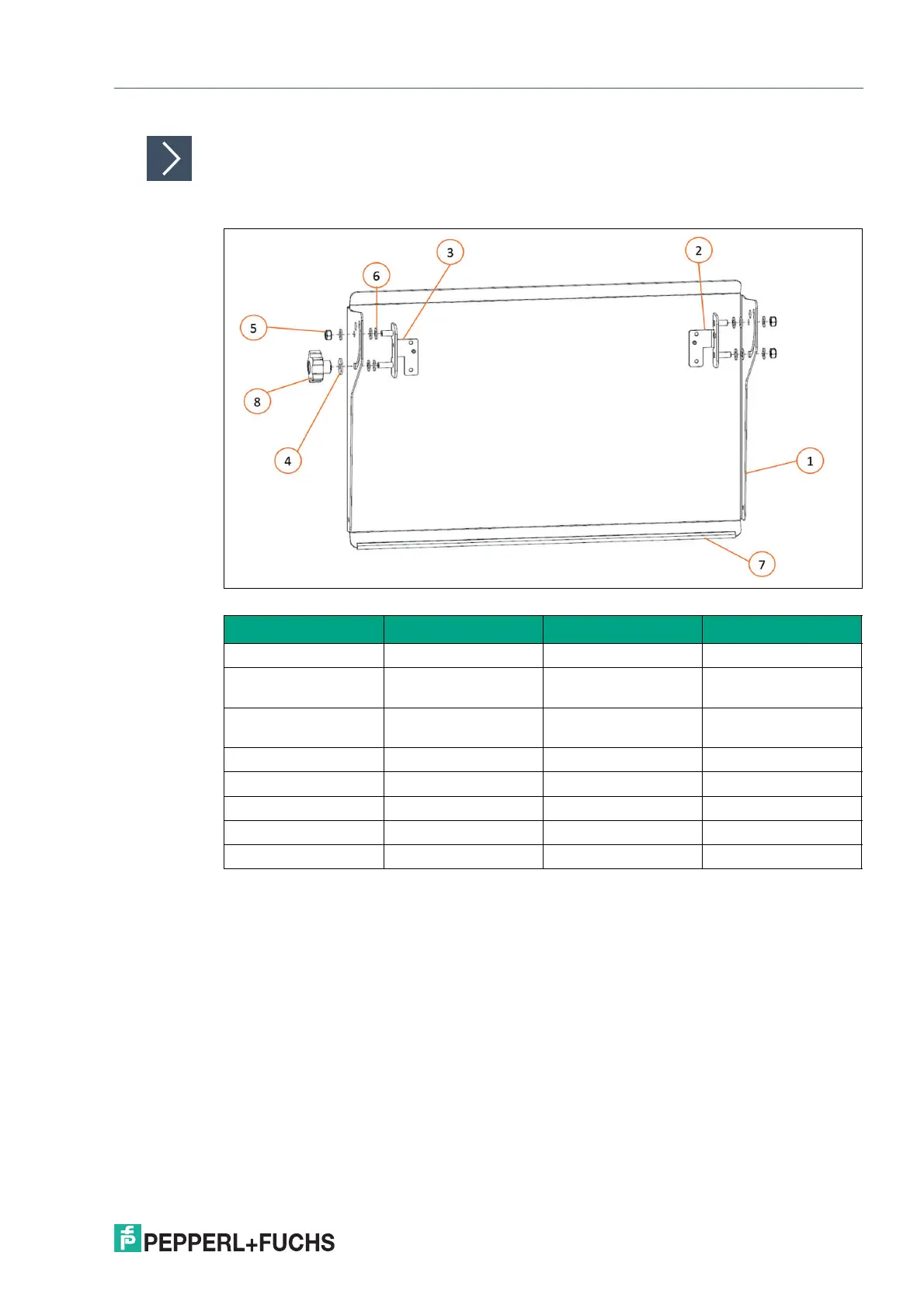

Figure 4.32 Items for the pre-installation of the top sunshield
Item QTY Description Part-No.
1 1 Sunshield top -
2 1 Sunshield Mounting
Bracket, left
-
3 1 Sunshield Mounting
Bracket, right
-
4 1 Washer, M8 oversized 126822
5 3 M8 lock nut 311489
6 11 Washer, M8 flat 522104
7 1 Edge protector 523747
8 1 Knob, M8 lobe 922550
