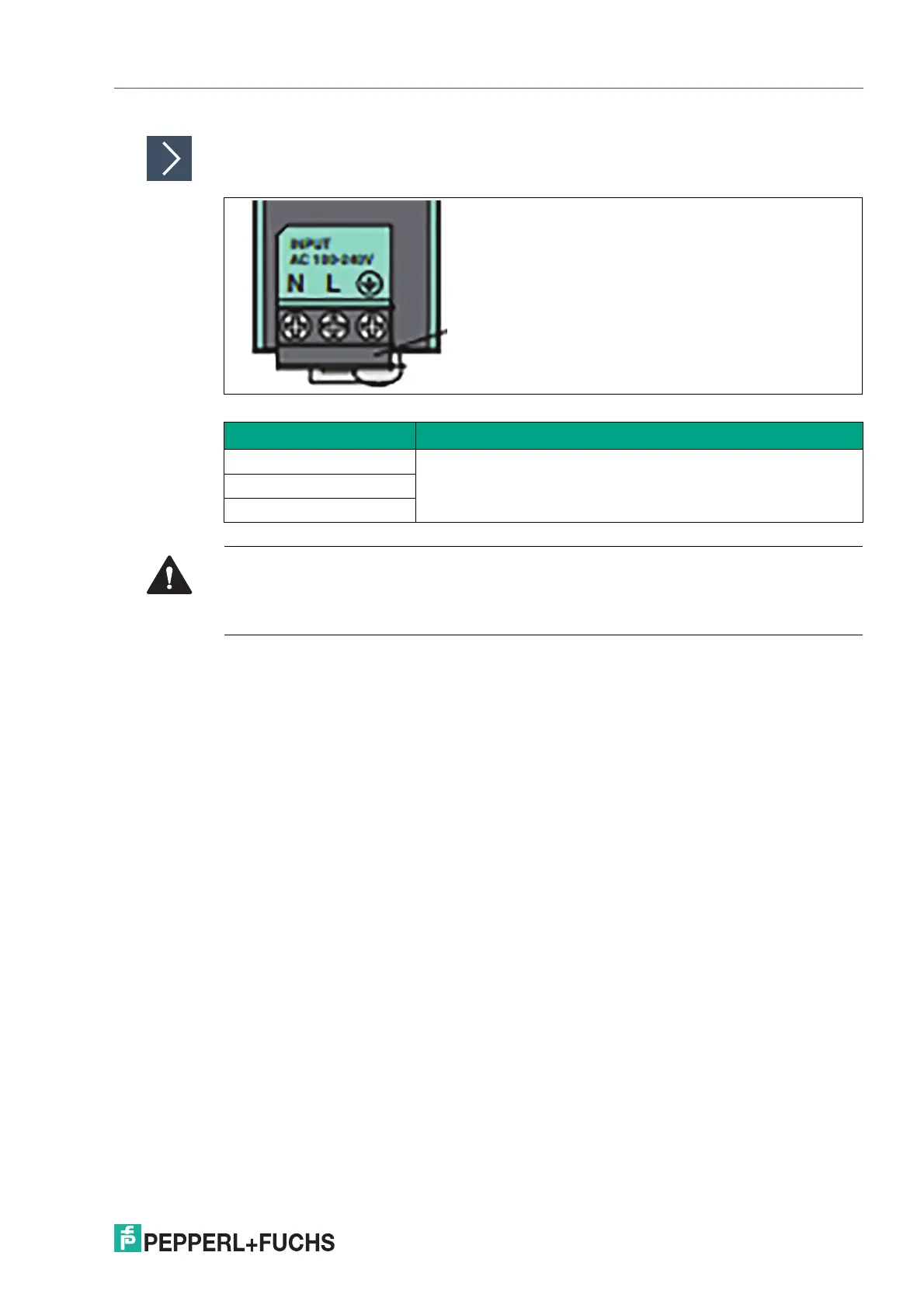

Wiring and Connecting the PS1000-A6-24.5 Field Input
Figure 5.13
Wiring Allowed cable diameter
N AWG 16 bis AWG 12 (1.5 mm²...4 mm²)
L
PE
Warning!
All three wires must be connected!
For further information regarding the AC power supply module refer to PS1000-A6-24.5 man-
ual.
