VisuNet FLX System
Installing Peripherals
Mounting the EXTA4-* Keyboard to VisuNet FLX Housing
Mechanical Installation description
1. Open and remove the four cover plate screws on the bottom-left side of the AG-3200 housing.

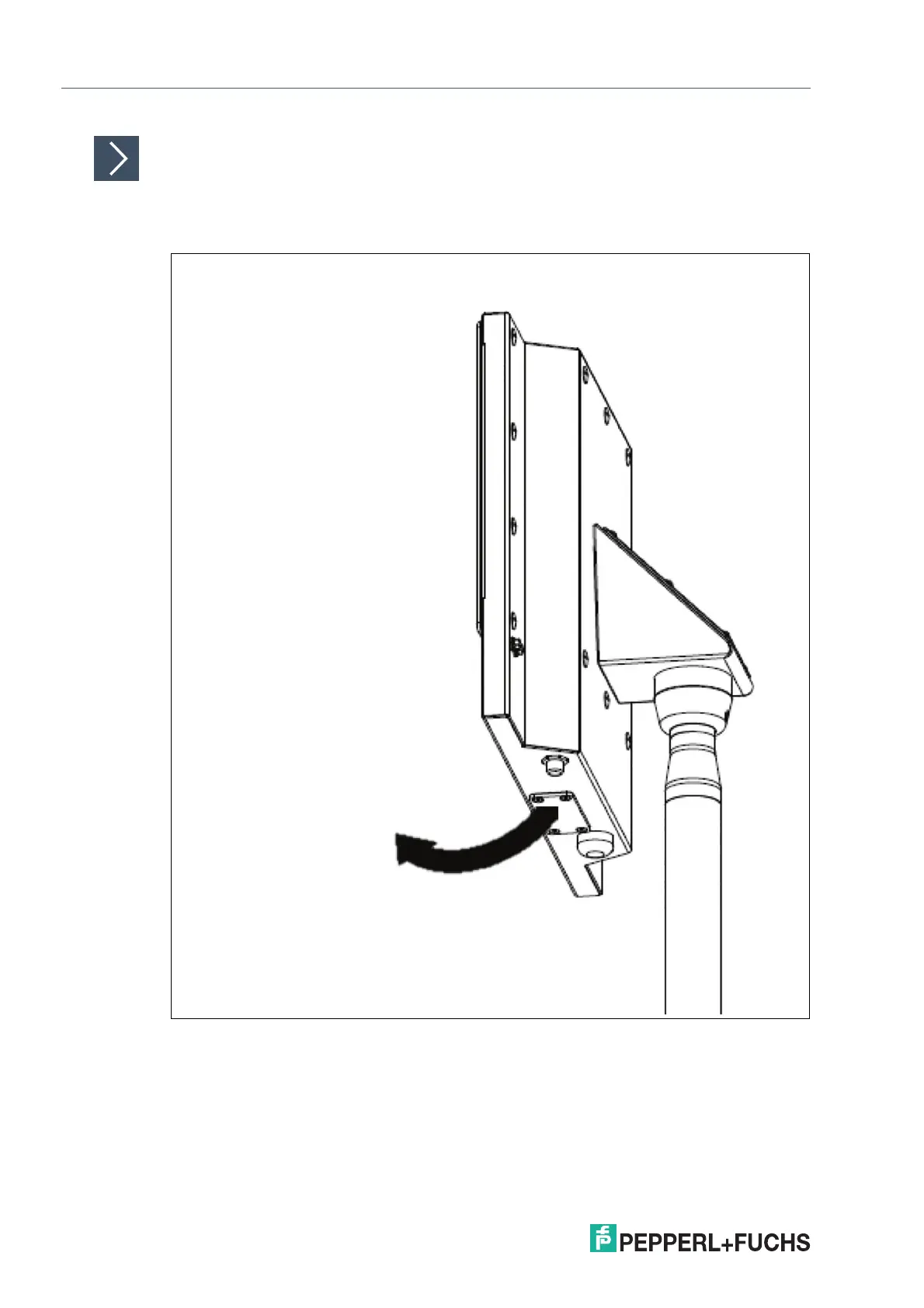

Figure 7.1
2. Route the keyboard cable with the USB connectors through the hole of the AG-3200 housing.
