Cable installation for IDM Zone 2/22 Barcode Readers and Base Stations
For the installation of the IDM barcode readers the USB supply cable SK-IDM-Z2-J2-1M-U-N is
necessary.

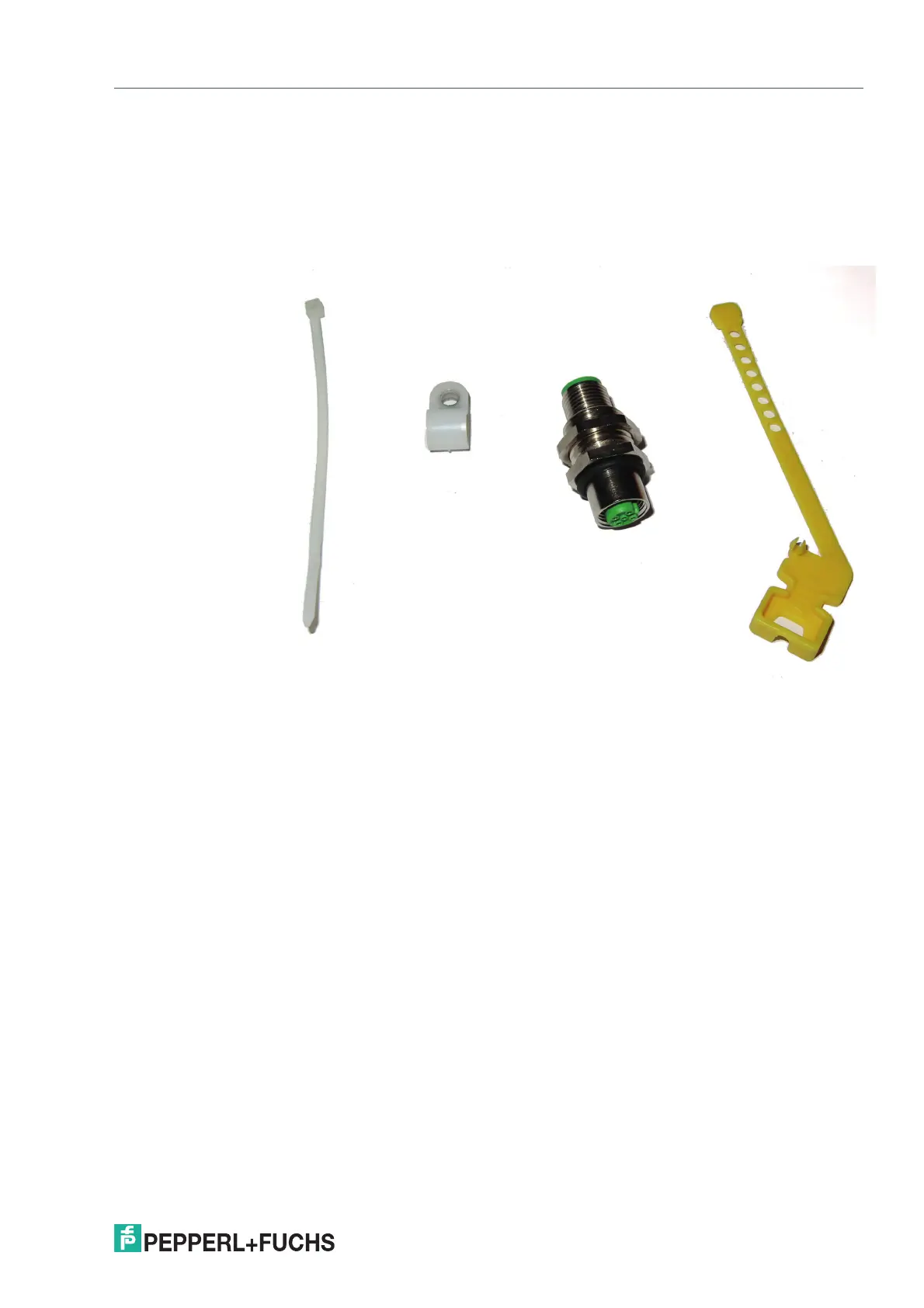

Required Components
• ADAPTER-3200-10-304B-M12
• KIT-IDM-Z2-USB-N0
• SK-IDM-Z2-J2-1M-U-N USB supply cable
• CBL-IDM160-D-J1-U-* USB connection cable
• IDM-Z2-160-D-1D-J2-*, IDM-Z2-260-D-2D-J2-S1-N-N0, or IDM-Z2- x61-B-J1-BT-N0 and
IDM-x61-* in combination with required Bluetooth® handheld barcode reader
• Optional: Scanner Holder or Holder brackets
Required Installation Tools
• Flat head screwdriver
• 19-mm socket wrench for counter nut and connector
• Size 2.5-hex wrench for cable tie screws
• Safety gloves
All tools should be torque controlled if a torque is specified.
To Next Page
