VisuNet FLX System
Installing Peripherals
2023-11
93
Installing the supply cable SK-IDM-Z2-J2-1M-U-N
1. Open the housing. See chapter 4.5 and open die back plate of the adapter.
2. Fix the M12 connector in the hole of the adapter. Tighten the M12 socket with 0.6 Nm. The lock
nut of the coupling in the adapter with 2 Nm.

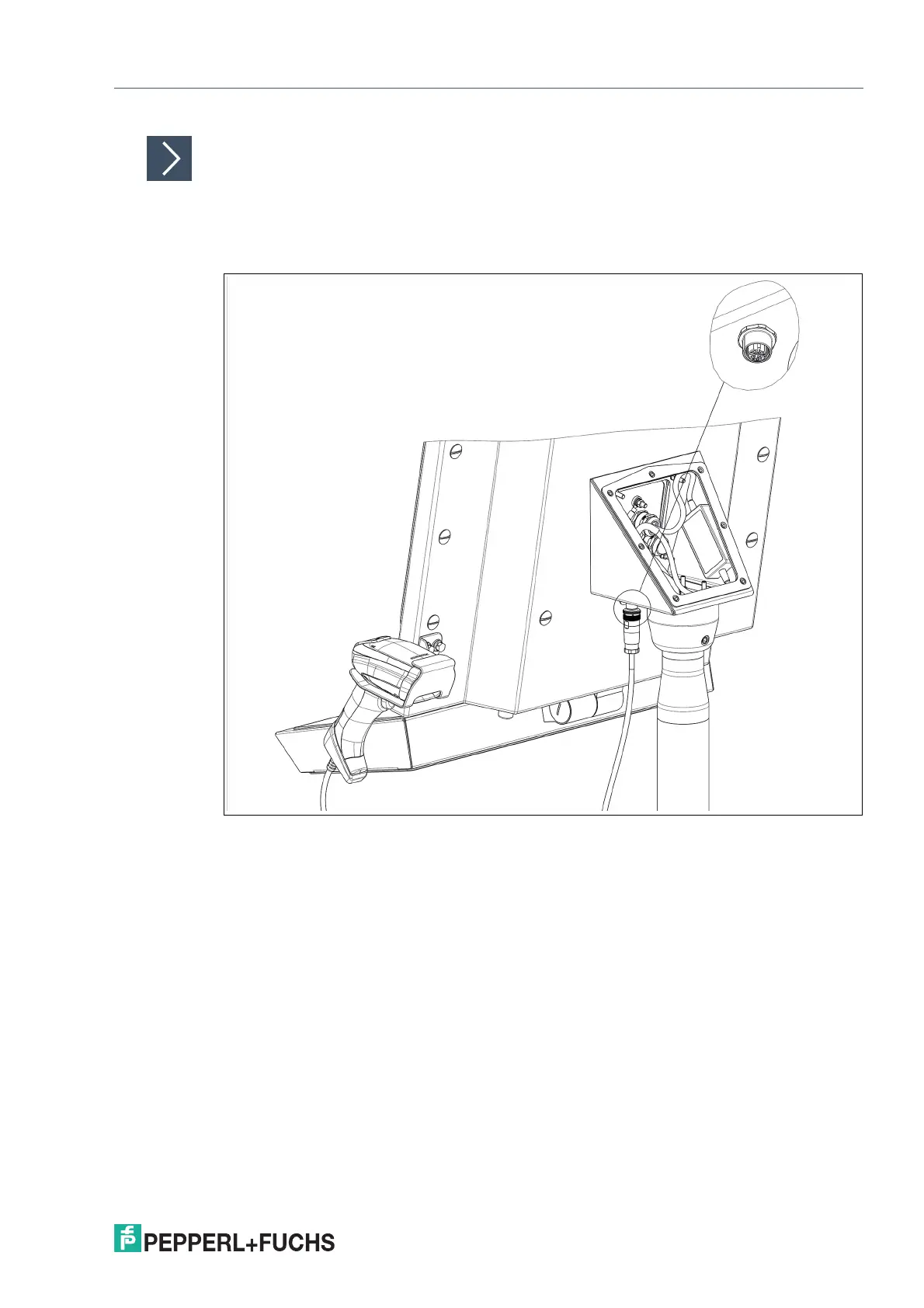

Figure 7.11
