4.3 AP One In-Wall

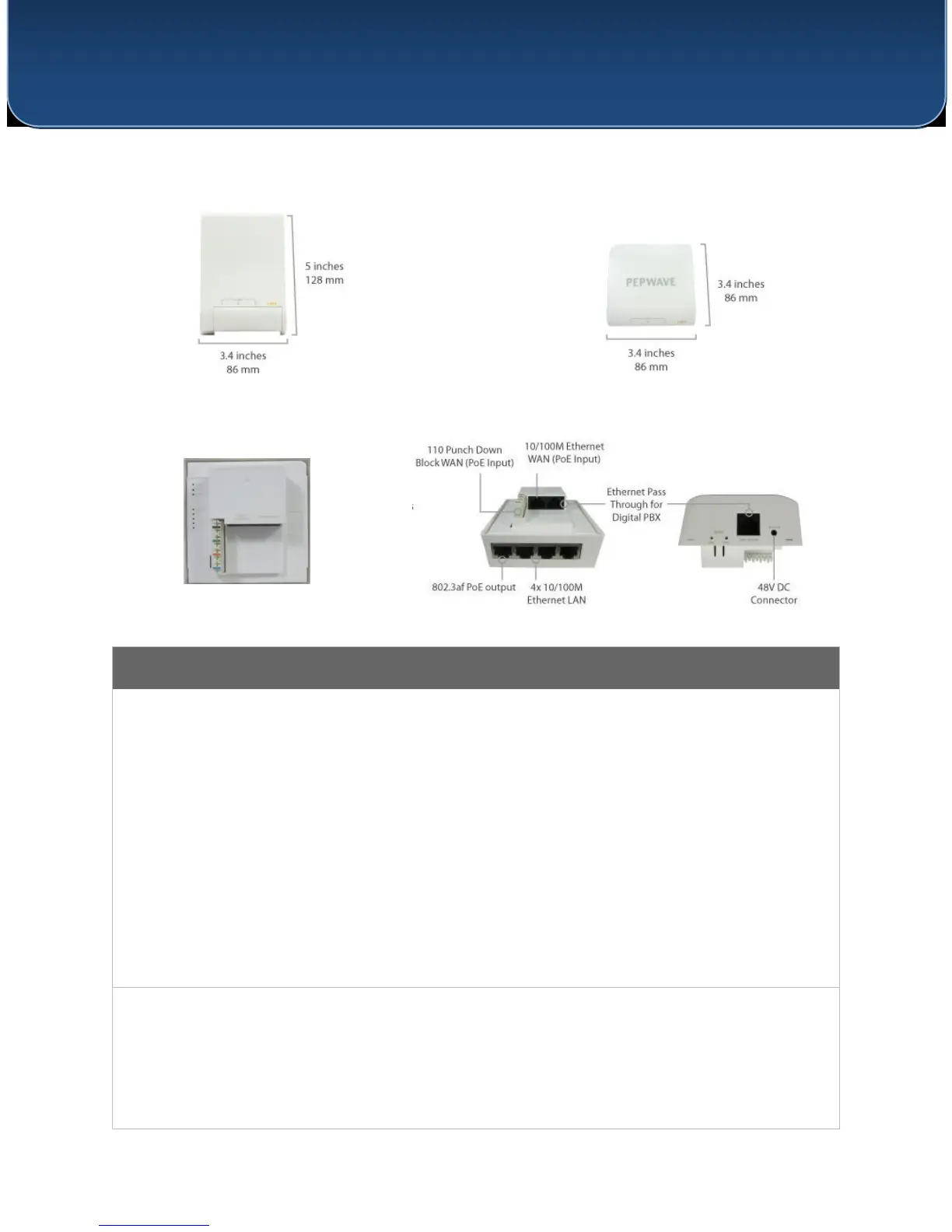

Front View (US) Front View (International)
Rear Panel View Top View
LED Indicators
Status
RED – Access point initializing
GREEN – Access point ready
WLAN 1/2
OFF – 2.4/5GHz Wi-Fi radio off
BLINKING – AP sending/receiving data
GREEN – 2.4/5GHz Wi-Fi radio on
Note that this model includes a 2.4GHz Wi-Fi radio and a 5GHz Wi-Fi radio that can operate
simultaneously to increase speed and reduce interference. WLAN1 displays the status of the
2.4GHz Wi-Fi radio, while WLAN2 displays the status of the 5GHz WiFi radio.
LAN 1-5
OFF – No device connected to Ethernet port
BLINKING – Ethernet port sending/receiving data
ON – Powered-on device connected to Ethernet port
Note that LAN 5 displays the status of the uplink connection
