88 . DSC 6000 Installation and Hardware Guide

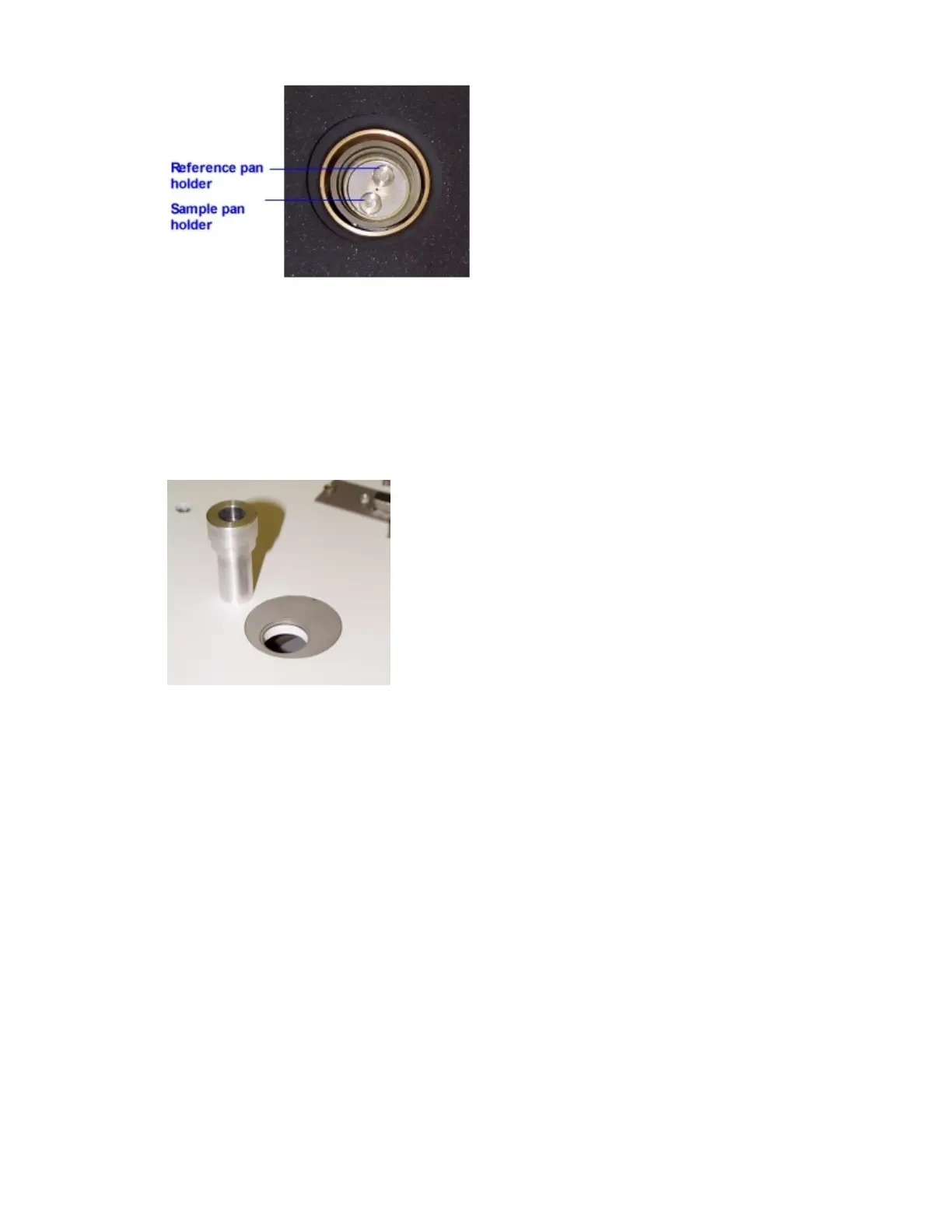

7. Place a reference pan on the reference position.
8. Replace the lower furnace lid holder.
9. Replace the base plate lid holder.
10. Use the furnace lid holder alignment tool to position the lower furnace lid holder
properly with respect to the upper lid holder.
Make sure that the tool is all the way down.
11. Look down through the tool and make sure that the furnace is centered in the tool.
12. Carefully remove the alignment tool without disturbing the lower furnace lid holder.
13. Place the autosampler on top of the base plate, aligning the two holes near the D
connector that engage the two standoffs on the base plate. Gently push the
autosampler down to snap in place.
14. Attach the autosampler to the base plate with the four screws.
15. Place the sample trays on the autosampler with tray 1–22 toward the front and tray 23–
45 on the rear.
After placing a reference pan within the instrument and replacing the autosampler, you
should run through the gripper alignment procedure to make sure that the gripper aligns
with the sample pans at locations 12 and 33.
