PerkinElmer Lambda Series User Manual

Installing your Lambda Spectrometer . 41

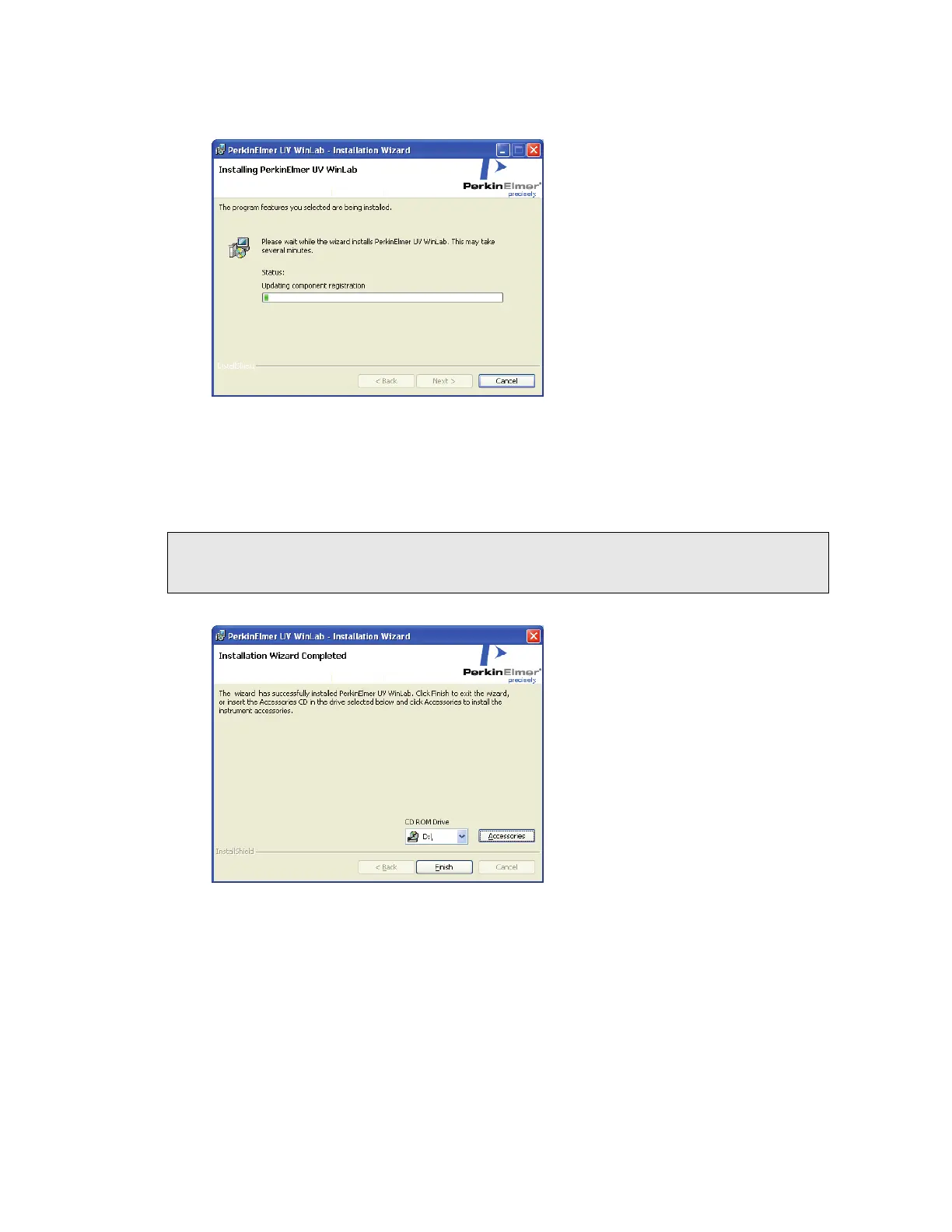

13. Click Install.
The Installation begins.
If you are upgrading UV WinLab, or installing the application onto a system with other
PerkinElmer applications already installed, then the PerkinElmer Login dialog may be
displayed. In this case, login as a PerkinElmer software Administrator. Use the
Administrator User name and password that you use for the PerkinElmer software that
is already installed on the PC.
NOTE: If password control in the security component is set to No Passwords Login, the
PerkinElmer Login dialog does not include the password field. Select the
Administrator from the User Name drop-down list.
When the installation is complete a confirmation message is displayed.
14. If you do not wish to install any accessories, go to Step 18.
OR
If you wish to install accessories, insert the accessory CD into the CD drive, select the
drive from the drop-down list and then click Accessories.

PerkinElmer Lambda Series Specifications

General

Category	UV Vis Spectrophotometer
Spectral Bandwidth	0.5, 1, 2, 4 nm
Data Interval	1, 2, 5 nm
Slit Width	0.5, 1, 2, 4 nm (selectable)
Light Source	Deuterium and Tungsten Halogen lamps
Display	LCD
Interface	USB, RS-232
Power Requirements	100 - 240 VAC, 50/60 Hz
Wavelength Range	190-1100 nm
