PerkinElmer Lambda Series User Manual

46 . High-Performance Lambda Spectrometers Getting Started Guide
8. Click Next.
The software will automatically perform a check to see if the correct instrument is
attached to the selected port and switched on, and will display a warning message if
not.

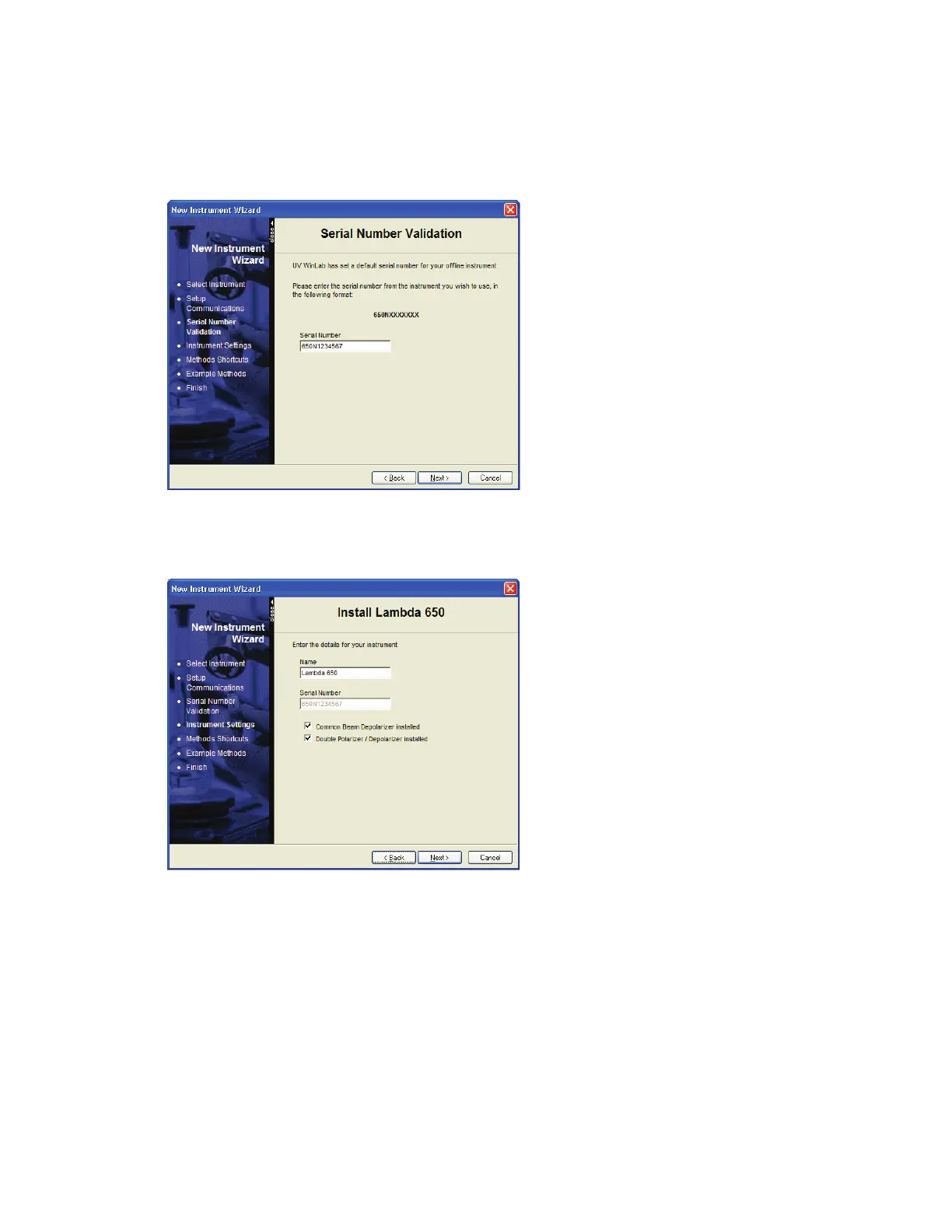

You may then be asked to confirm the serial number of the instrument.
9. Check the serial number on the right-hand side of the instrument, where the PC
connects to the instrument, correct it if necessary, and then click Next.
The Install Lambda page is displayed.

PerkinElmer Lambda Series Specifications

General

Category	UV Vis Spectrophotometer
Spectral Bandwidth	0.5, 1, 2, 4 nm
Data Interval	1, 2, 5 nm
Slit Width	0.5, 1, 2, 4 nm (selectable)
Light Source	Deuterium and Tungsten Halogen lamps
Display	LCD
Interface	USB, RS-232
Power Requirements	100 - 240 VAC, 50/60 Hz
Wavelength Range	190-1100 nm
