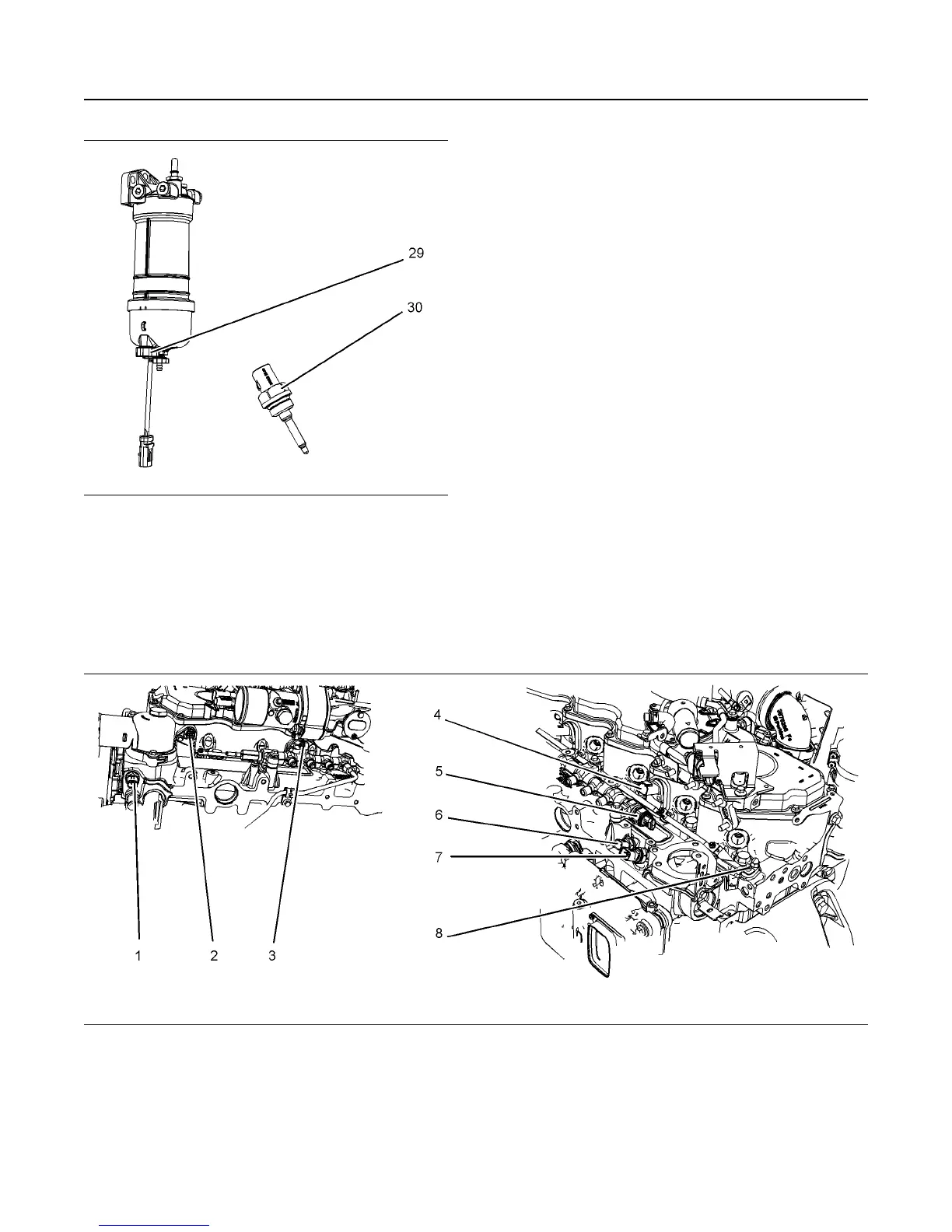

Illustration 40 g03393046
Typical example
(29) Water in Fuel Switch
(30) Inlet Air Temperature
Some applications do not require a diagnostic
connector (9) installed in the engine wiring harness.
The Inlet air temperature sensor (30) will be installed
in the induction system between the air cleaner and
the inlet manifold.
Illustration 41 g03058119
Typical example
(1) Coolant Temperature Sensor
(2) Injector connector
(3) Injector Connector
(4) Injector Connector
(5) Fuel Pressure Sensor
(6) Inlet Manifold Temperature Sensor
(7) Inlet Manifold Pressure Sensor
(8) Glow Plug Connection
SEBU8732
47
Features and Controls
Sensors and Electrical Components
