Aftertreatment Components

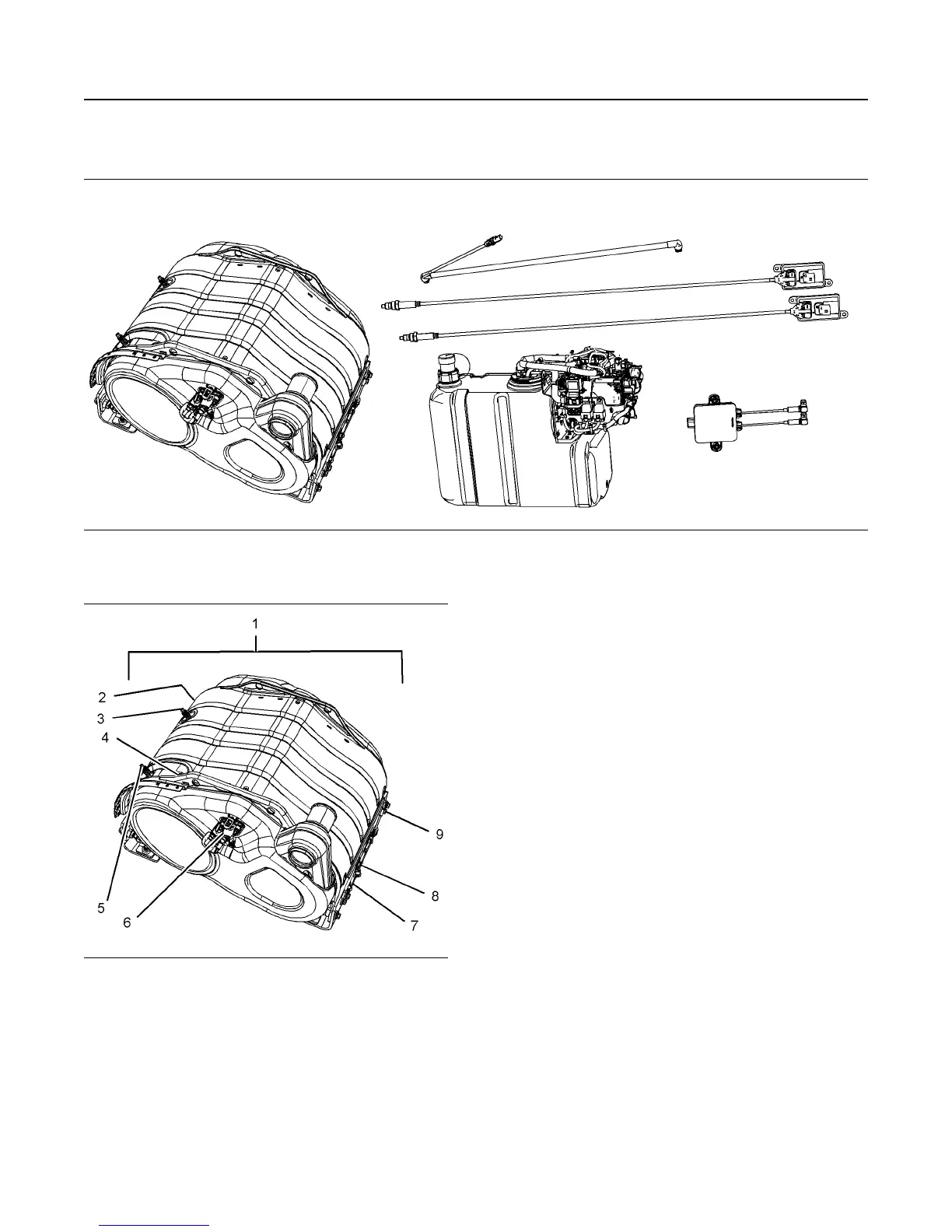

Illustration 49 g03393078
Clean Emissions Module (CEM)
Illustration 50 g03393624
(1) Clean Emission Module
(2) Gas Intake Temperature Sensor
(3) Soot Sensor Antenna
(4) Location for NOx Sensing Element
(5) Soot Sensor Antenna
(6) Diesel Exhaust Fluid Injector
(7) Temperature Sensor Connector
(8) Identification Module
(9) Gas Temperature Sensor before Selective Catalytic Reduction
SEBU8732 53
