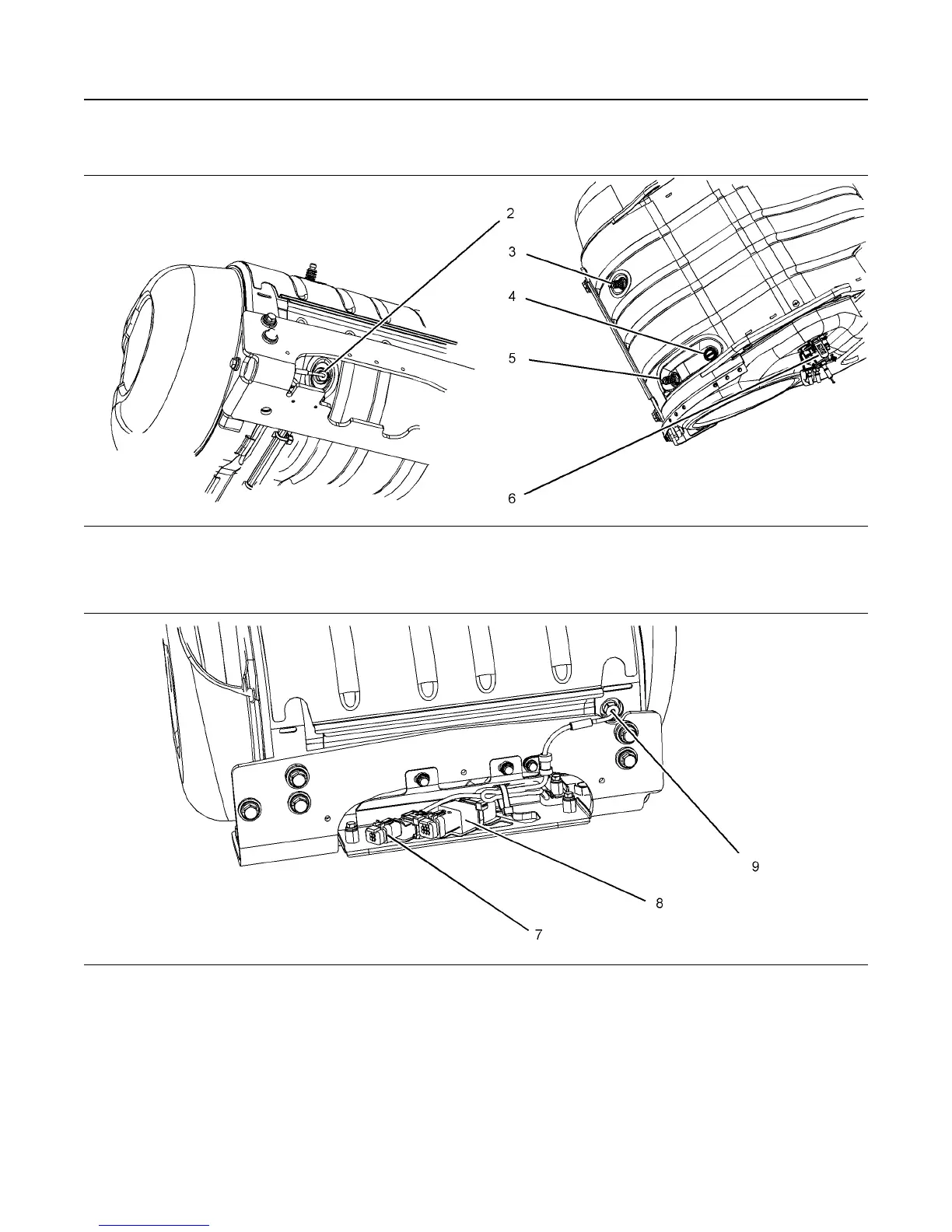

CEM Sensors
Illustration 51 g03393632
(2) Gas Intake Temperature Sensor
(3) Soot Sensor Antenna
(4) Location for NOx Sensing Element
(5) Soot Sensor Antenna
(6) Diesel Exhaust Fluid Injector
Illustration 52 g03393634
(7) Temperature Sensor Connector
(8) Identification Module
(9) Gas Temperature Sensor before
Selective Catalytic Reduction
54
SEBU8732
Features and Controls
Sensors and Electrical Components
