22 Workshop Manual, TPD 1458E, issue 3 - Perkins Confidential: Green
400 Series
Cylinder head gasket
To remove and to fit Operation 3-10

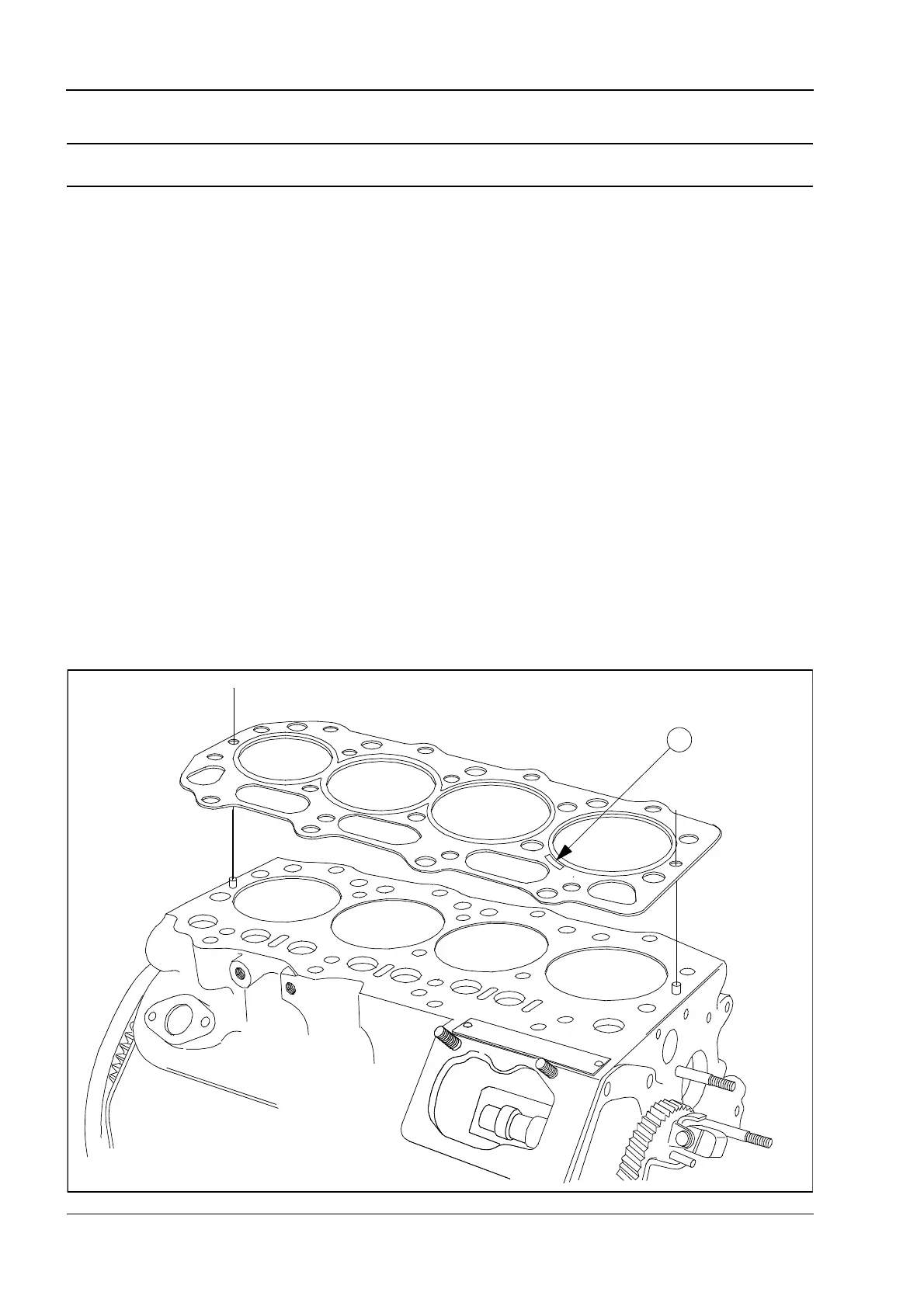

Align the gasket on the dowels in the cylinder block.
Cautions:
l The gasket must only be fitted with the markings (1) facing up.
l When fitting a new gasket it must be replaced with a gasket of the same thickness as originally fitted. The
gasket thickness can be identified by the part number that is stamped on the gasket.
l The correct piston height must be maintained to prevent damage to the pistons and valves and ensure that
the engine conforms to emission legislation.
Note: Always fit dry.
1
U
n
c
l
e
a
n
A
n
d
H1043
