54 Workshop Manual, TPD 1458E, issue 3 - Perkins Confidential: Green
400 Series
Slider
To remove and to fit Operation 6-4

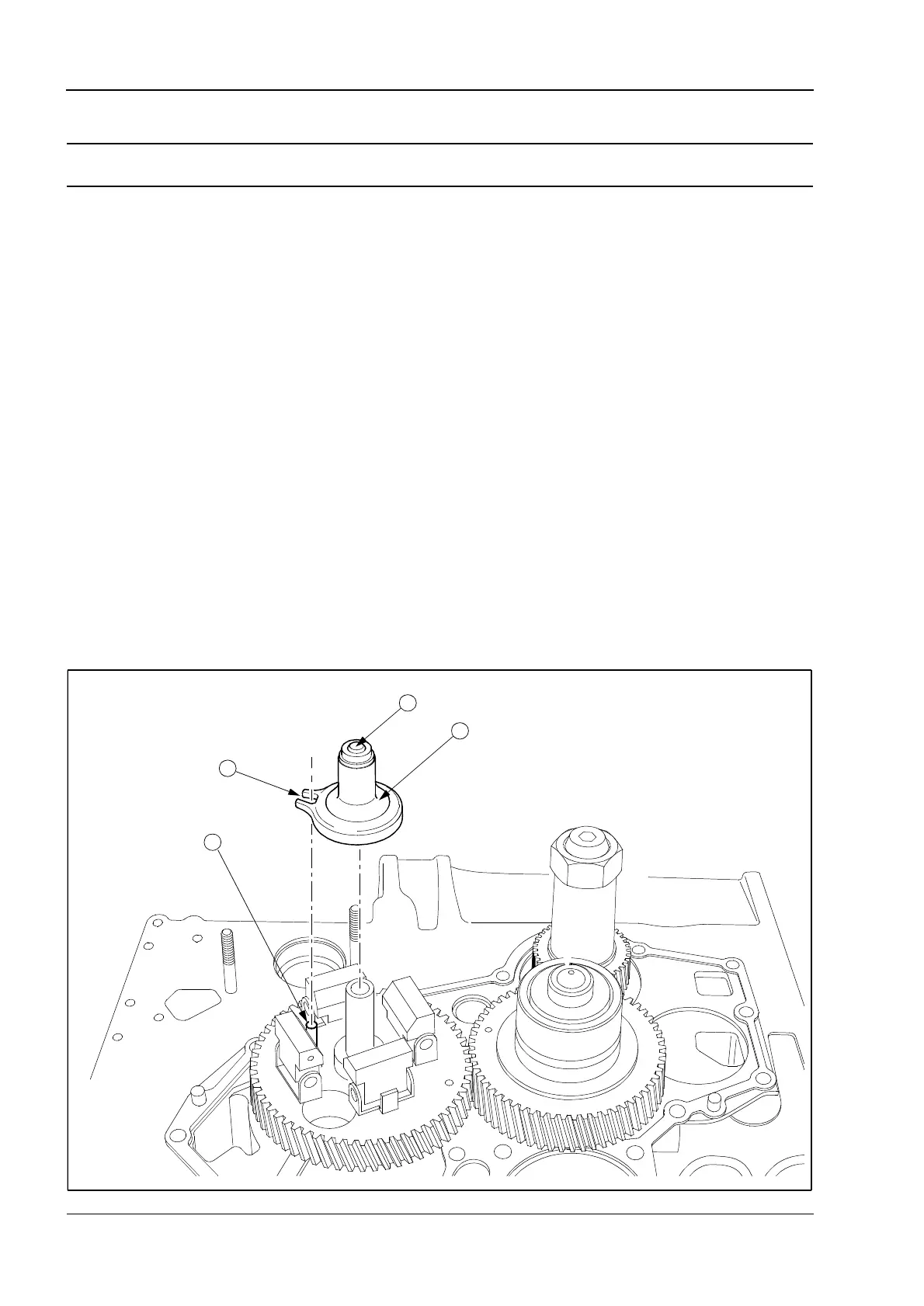

The slider (2) must be fitted with the slot (4) held captive by the pin (3).
When fitting the timing case care must be taken to ensure correct alignment of the slider contact (1) with the
governor lever.
Caution: Incorrect alignment of the slider (2) on the pin (3) may result in the loss of engine speed control.
H1071
4
2
3
1
