84 Workshop Manual, TPD 1458E, issue 3 - Perkins Confidential: Green
400 Series

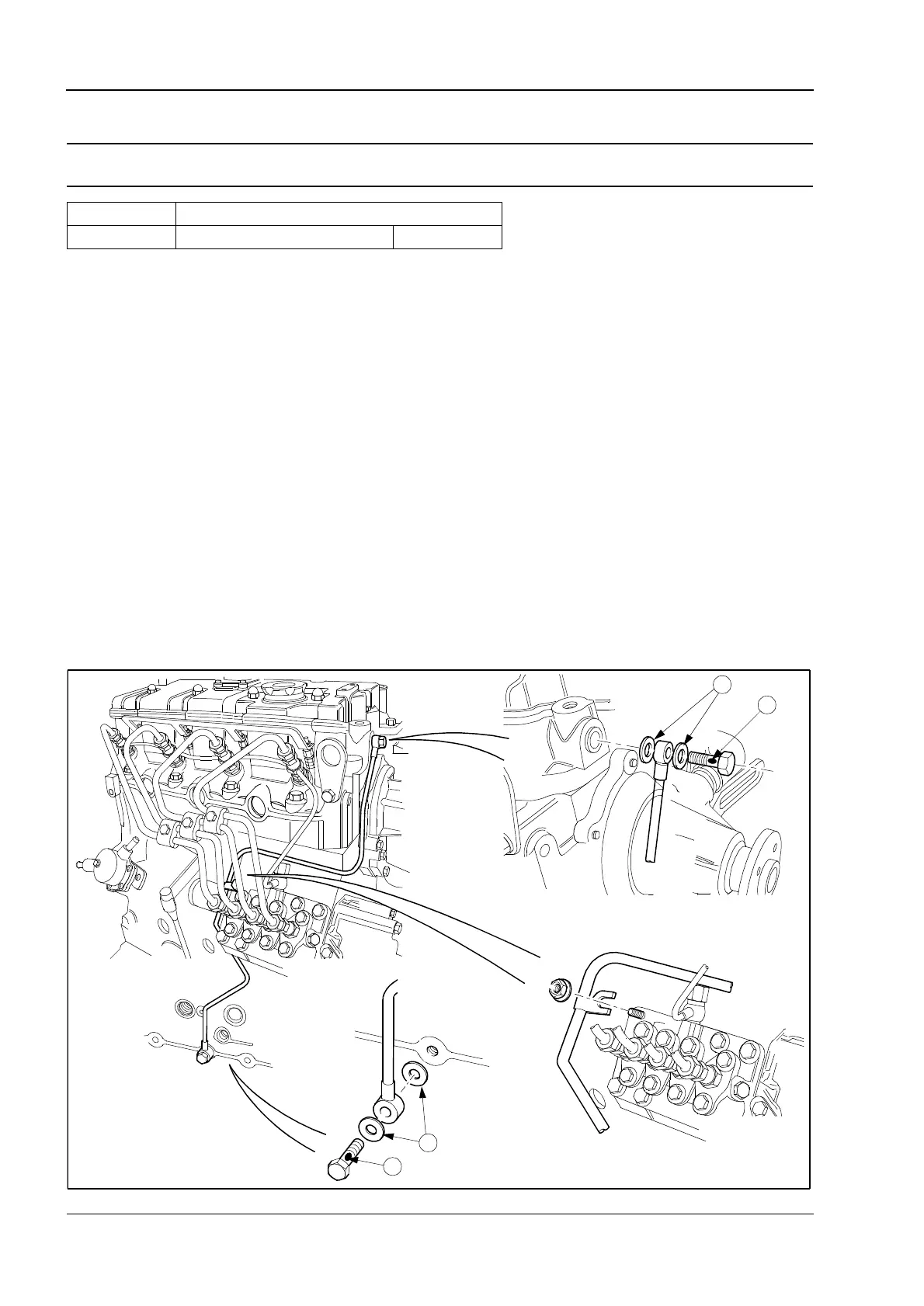

Lubricating oil pipes
To remove and to fit Operation 10-8
Note: The lubricating oil flow through the banjo bolt (2 and 4) is restricted.
Check the pipe for leaks and damage.
When fitting use new washers (1) and (3).
Engine Torque Nm (lbf ft) kgf m
All models Banjo bolt 12 (8.8) 1,2
H1097
3
1
4
2
