Perkins M216C - Page 117

KENR9126 117
Troubleshooting Section

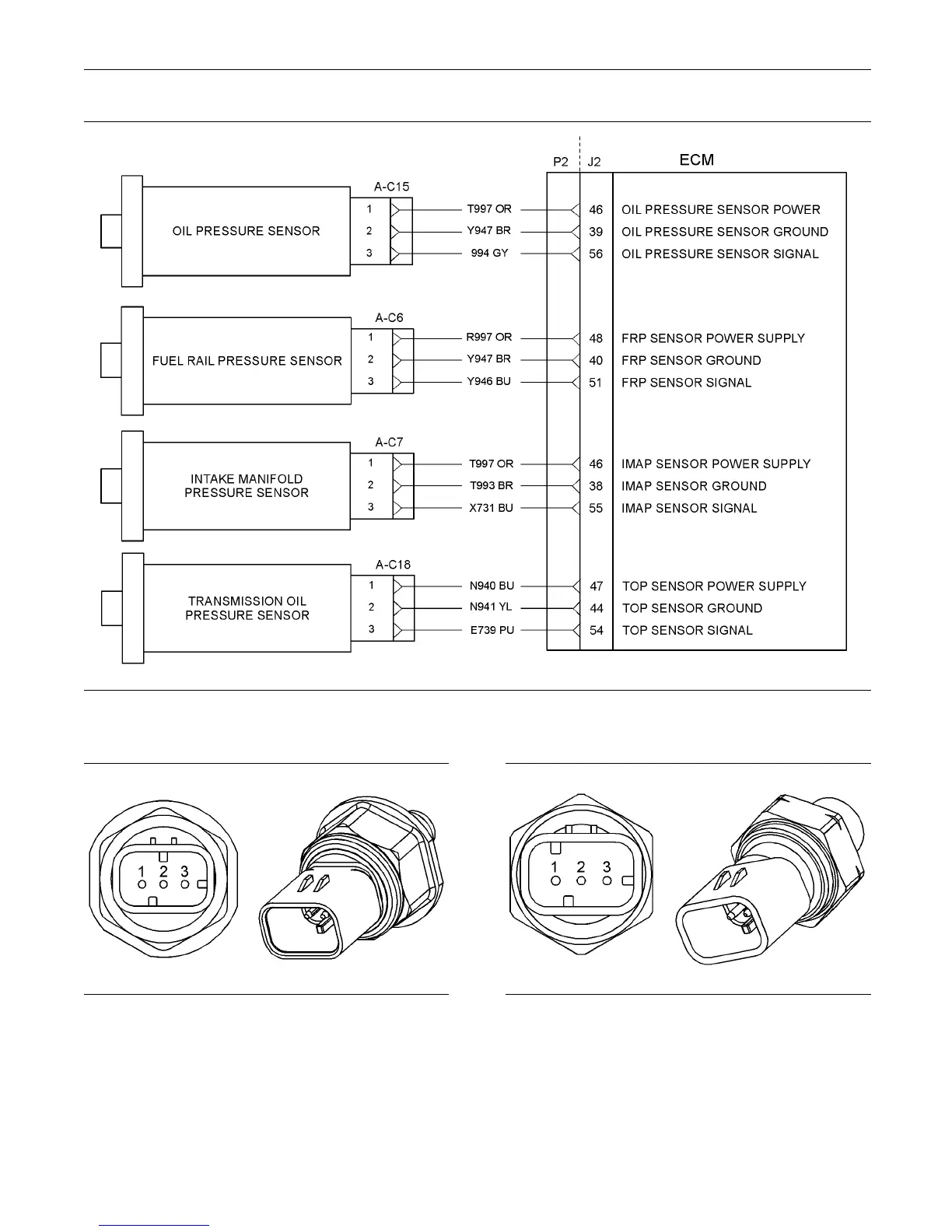

g02193216
Illustration 16
Typical example
g01173224
Illustration 17
Typical example of the fuel rail pressure sensor
(1) Voltage supply (Vs)
(2) Ground (GND)
(3) Signal (SIG)
g01173225
Illustration 18
Typical exam ple of the intake manifold pressure sensor
(1) Voltage Supply (Vs)
(2) Ground (GND)
(3) Signa l (SIG )
