KENR9126 213
Troubleshooting Section
Therequiredintakemanifoldpressureiscalculated
by the software
that is contained in the Electronic
Control Module (ECM). The ECM uses the wastegate
regulator to control the wastegate in order to provide
the precise va
lue of intake manifold pressure. The
wastegate regulator is controlled by a PWM signal
from the ECM.
Table 35
Pin Connections
Sensor Pin Function P2 Pin Connection
1Ground 19
2
Signal
17
g02184795
Illustration 93

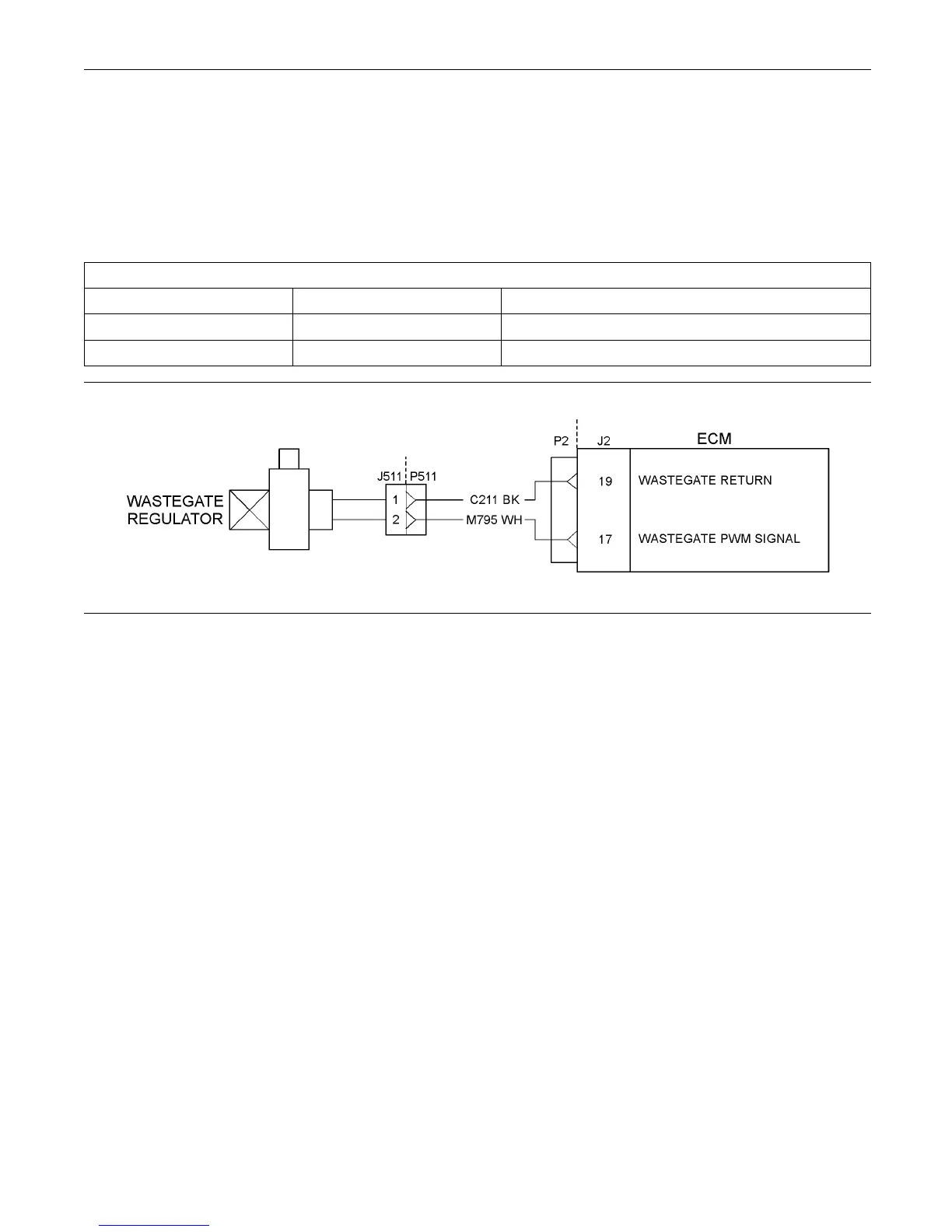

Schematic for the wastegate regu lator
To Next Page
