Back Bar Service Manual
Return to Table of Contents Electrical System Repair Instructions Page 7-25

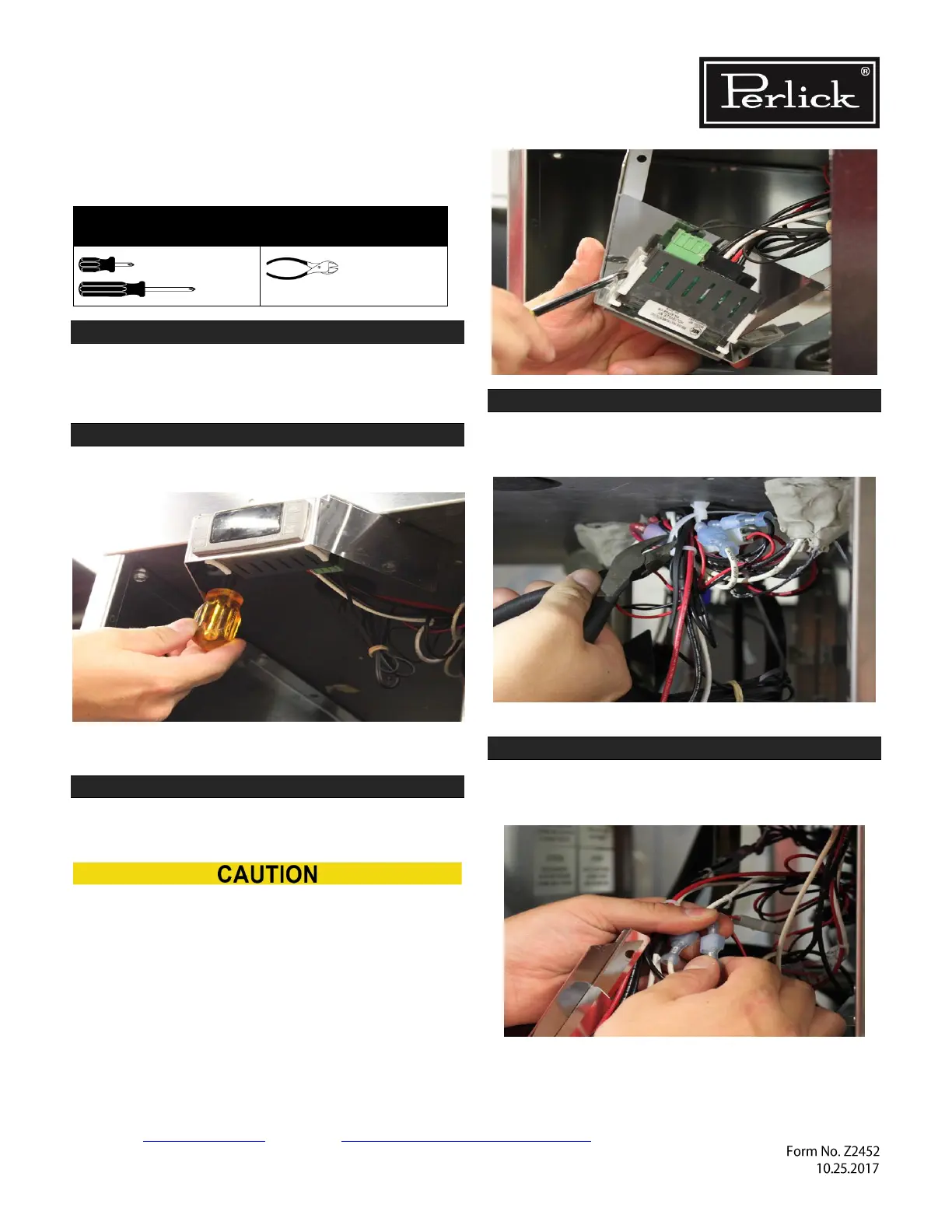

7.5.3 Replacing Control Module
7.5.3.1 Removing Dixell Controller
STEP 1.
Remove the grille by removing 3 Phillips head
screws, one at the top center and two at the
bottom edge.
STEP 2.
Remove 2 screws holding control cradle to unit.
STEP 3.
Remove clips holding the controller to the cradle.
Control cradle will slide freely from the controller.
Do not attempt to reuse the old wiring harness.
STEP 4.
Cut 2 zip ties holding wire harness to top of the
refrigeration module.
STEP 5.
Disconnect evaporator fan wire leads from the
main wiring harness.
