Back Bar Service Manual
Return to Table of Contents Electrical System Repair Instructions Page 7-26

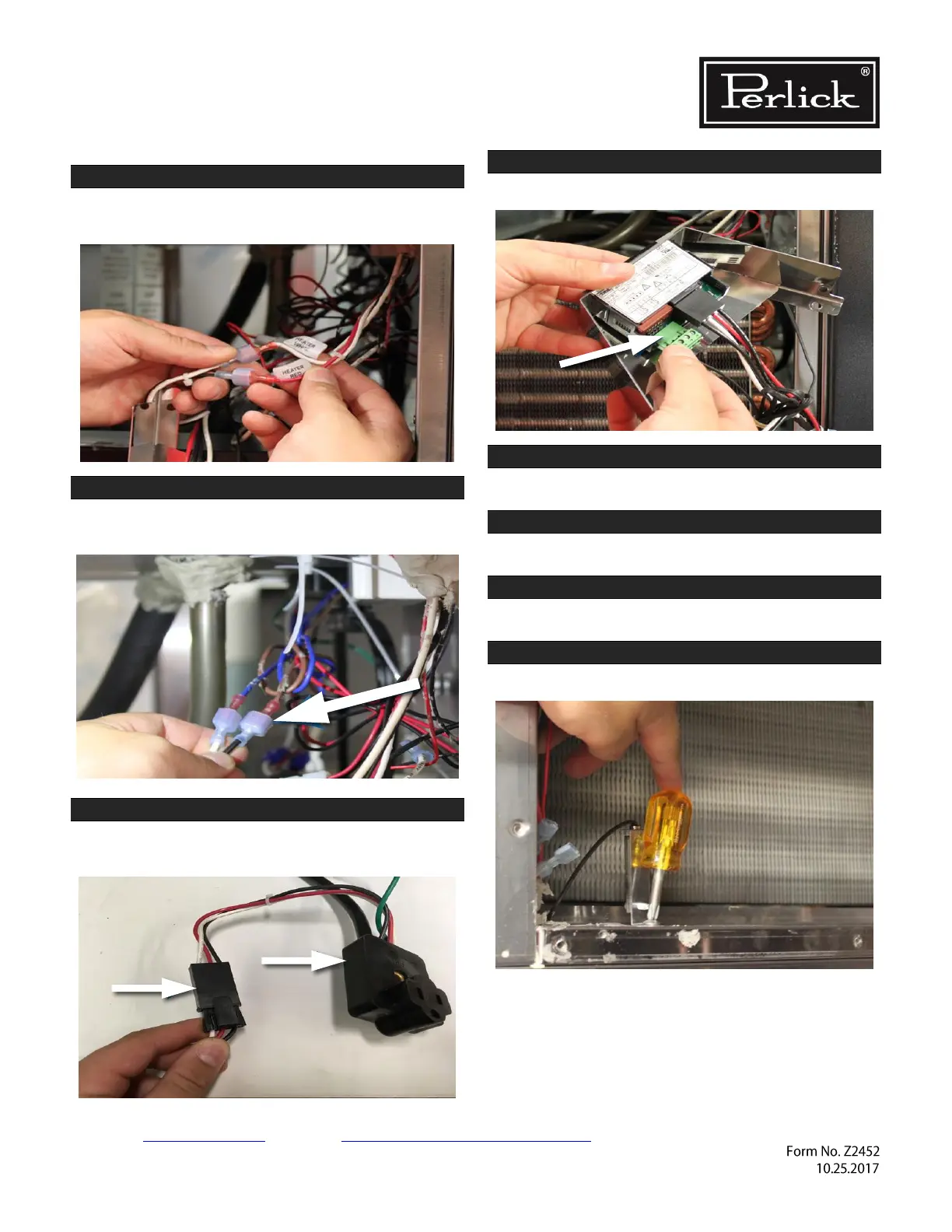

STEP 6.
Disconnect mullion heater wire leads from the
main wiring harness.
STEP 7.
Disconnect DC driver leads from the main wiring
harness.
STEP 8.
Remove main wiring harness by disconnecting
Molex connector from molded receptacle.
STEP 9.
Remove green probe connector from controller.
STEP 10.
Remove controller assembly from the unit.
STEP 11.
Remove shelving and pilaster from the unit wall.
STEP 12.
Remove evaporator fan panel. See Figure 6-8.
STEP 13.
Remove screw holding probe bracket to the unit.
To Next Page
