Perma PRO 250 - Page 71

permaPRO/PROCMP-2-2-

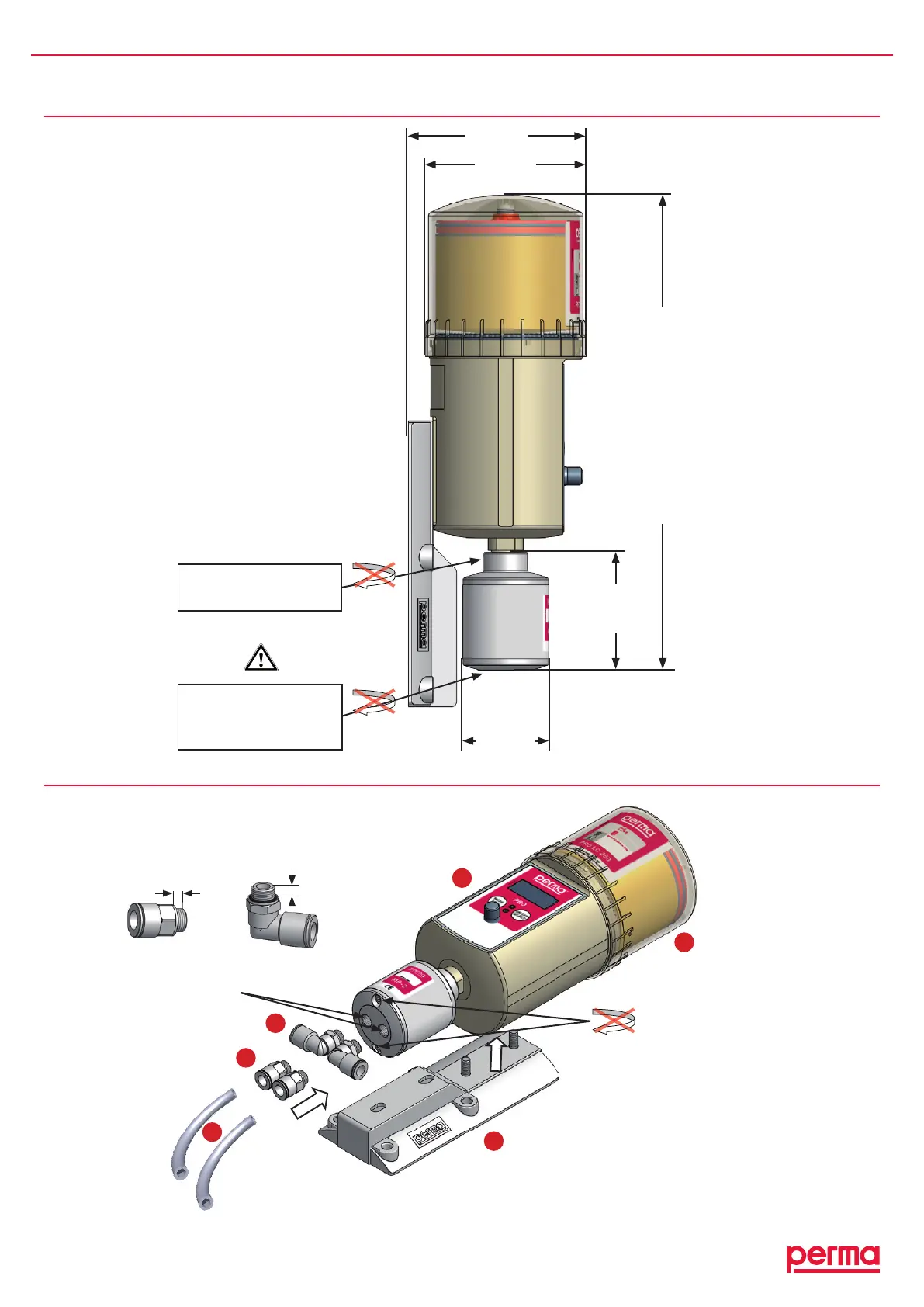

Installation Dimensions
Assembly
1
2
3
4
5
6
max.6mm
max.6mm
270mm (forlubricatorswithLC250
321 mm (forlubricatorswithLC500
Ø 92 mm
ATTENTION!
Ø 49 mm
67 mm
102 mm
DO NOT disconnect
distributor
DO NOT loosen
distributor assembly
screws
2connectionthreadsG1/8
forangledorstraight
connectingparts
