Permalert LiquidWatch Series - Typical Installations

3 Probe Installation
14
3.5 Typical Installations
Figures 10 through 14 show typical installations.
Contained Pipe Pressurized Contained Pipe
Double-Wall Tanks
Contained Area

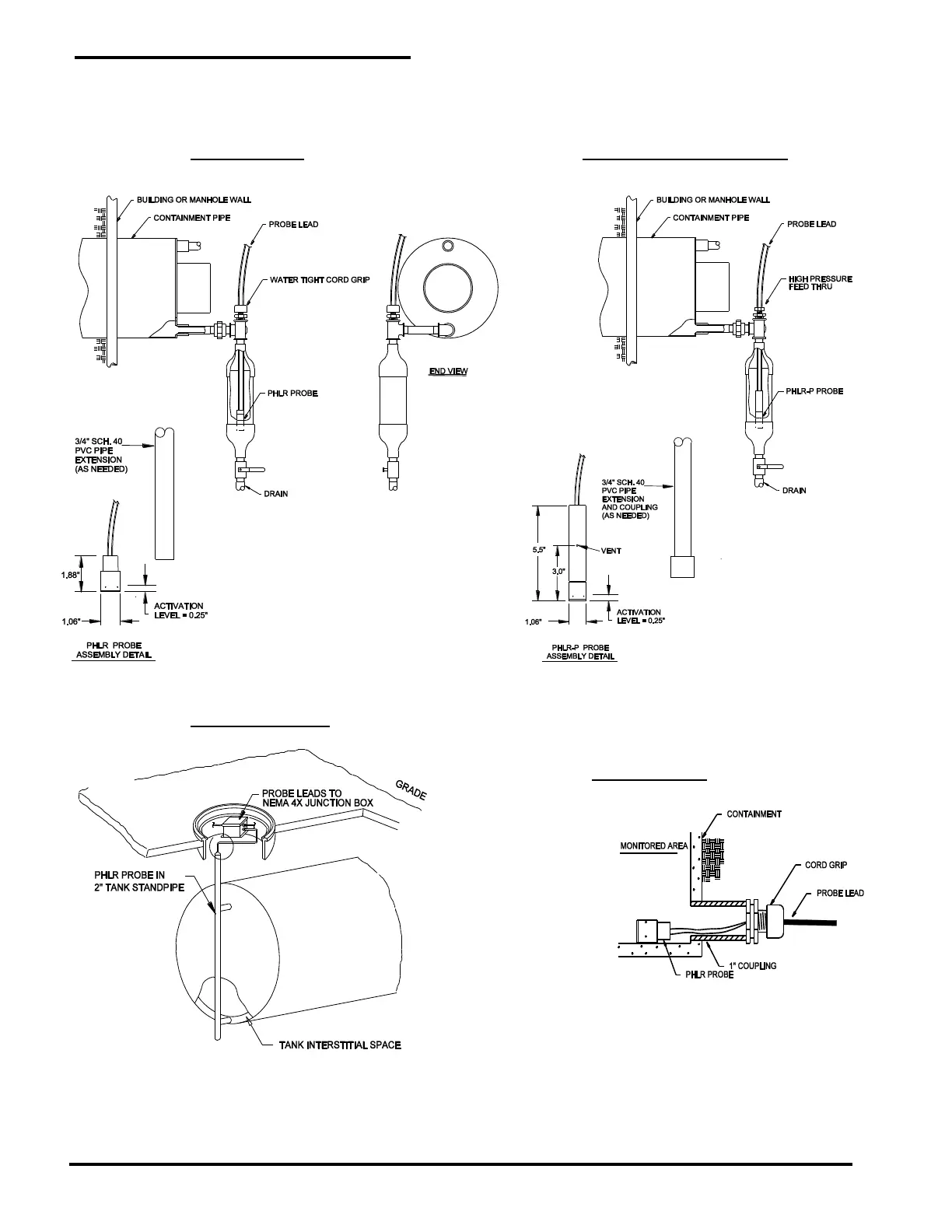

Figure 10
Typical PHLR-LW and PHLR-P-LW Probe Installations
