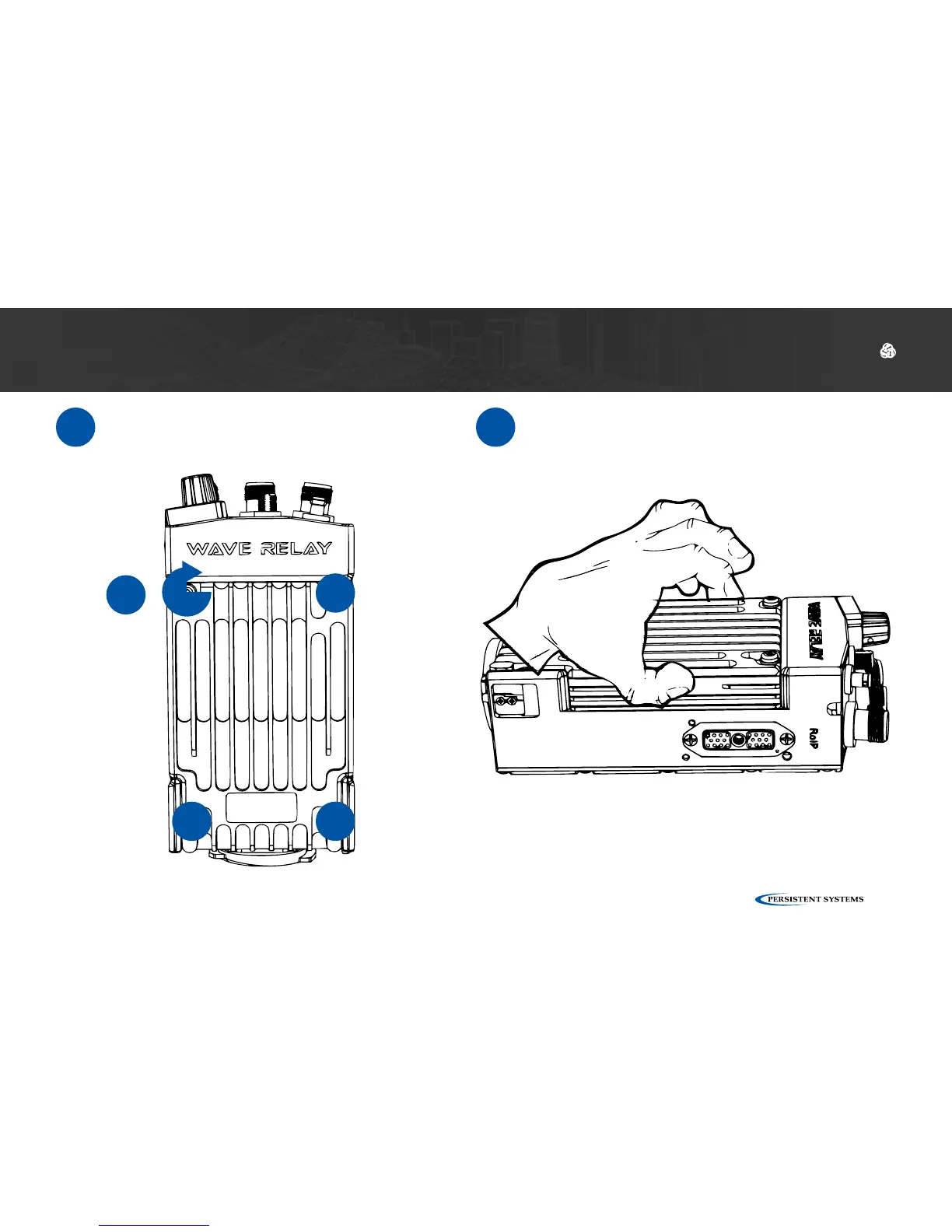

PHYSICAL SETUP: RF SETUP
4
Tighten screws clockwise in diagonal
order with a #1 Phillips Head screwdriver
until they stop (min. 4 in-lbs. of torque)
5
Pull on the radio module to verify that it
is attached securely. Ensure there are no
gaps in between the radio module and the
MPU5 chassis.
1
2
3
4
