PHYSICAL SETUP: RF SETUP

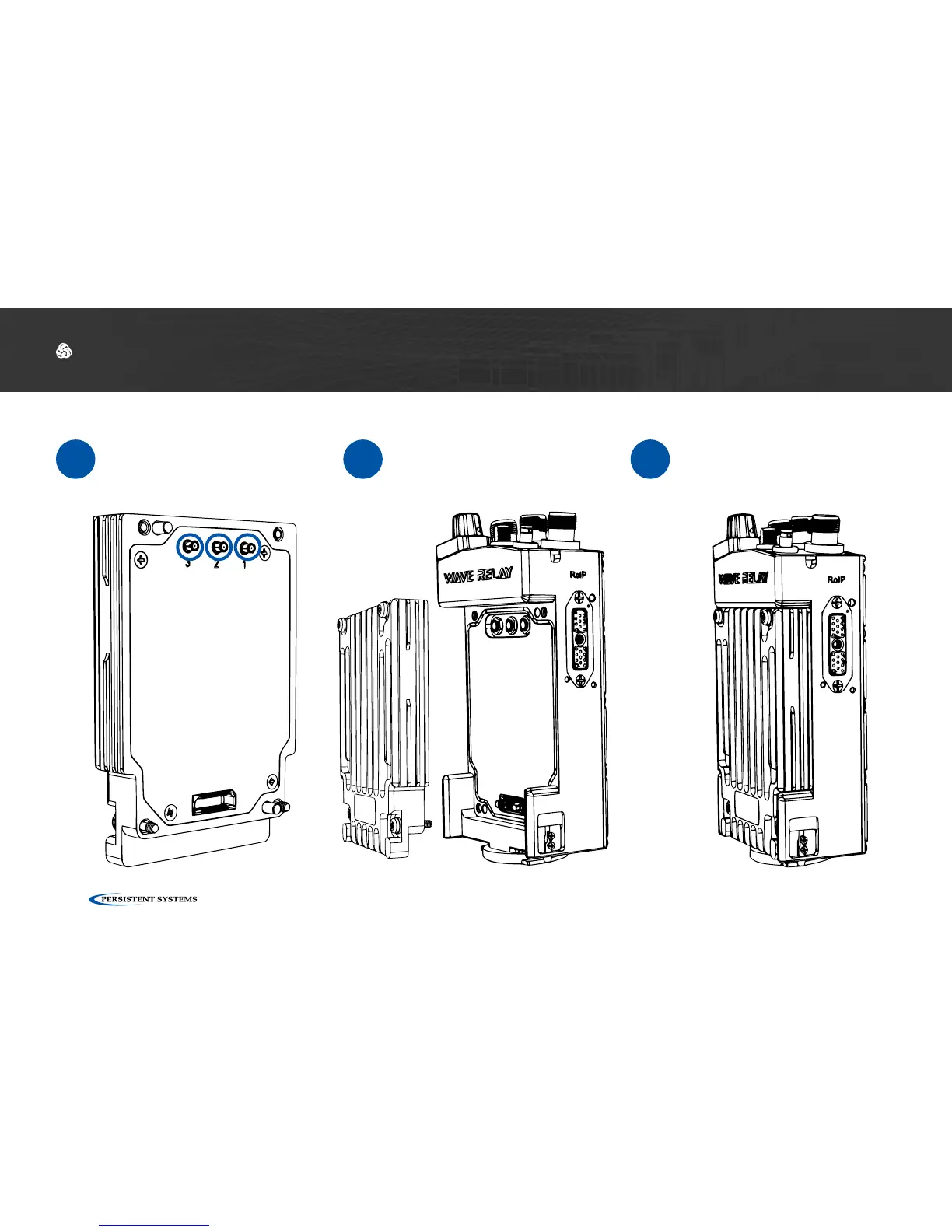

Inserting the Radio Module
1
If there are rubber caps
on the radio module
contacts, remove them.
2
Align the radio module
with the chassis.
3
Apply even force and
press the radio module
into the chassis.
