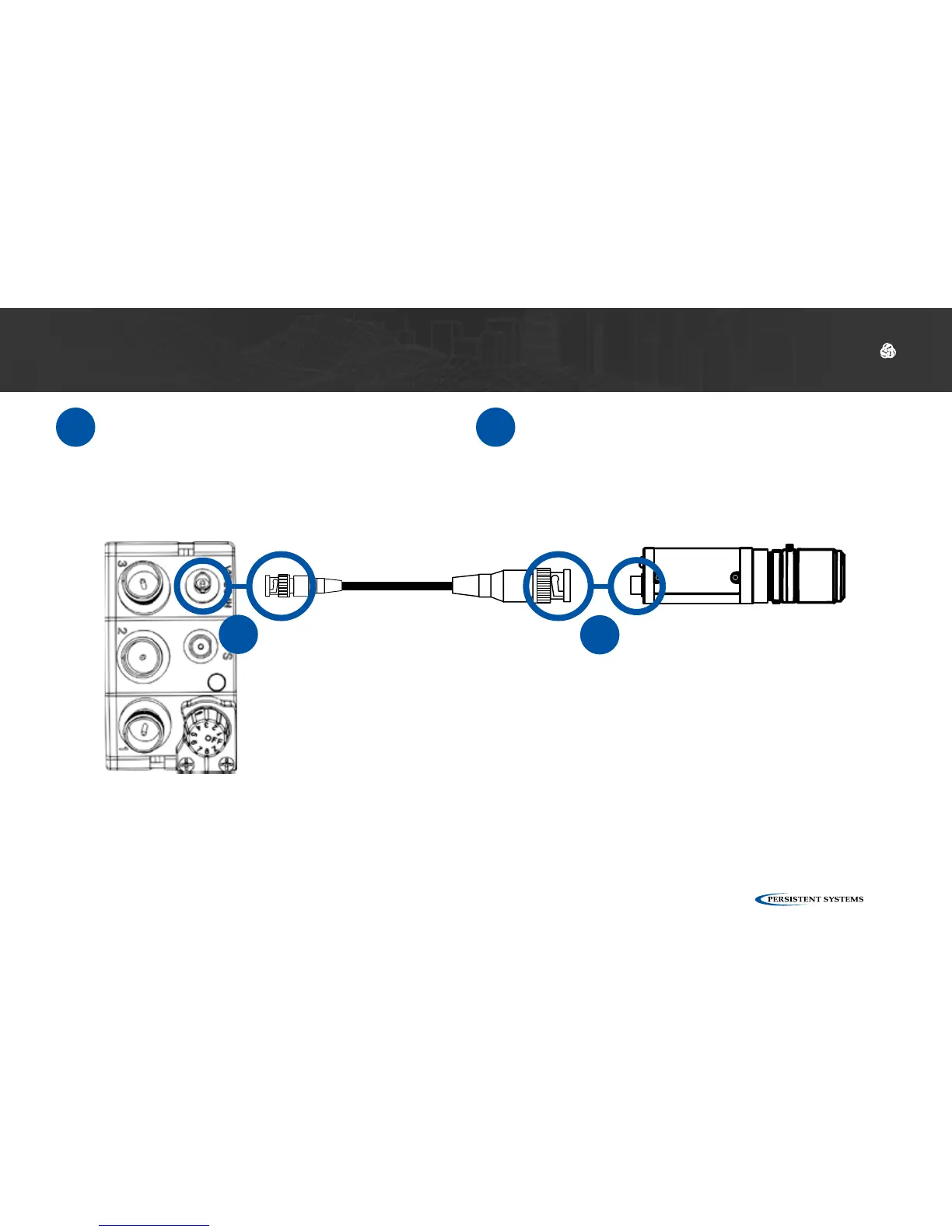

DEVICE OPERATION: CONNECTING A CAMERA
1
Connect the HD-BNC end of CBL-
VID-2001 to the HD-BNC connector on
the top of the MPU5.
2
Connect the BNC end of CBL-VID-2001 to
the BNC connector on the camera.
2
1
Note: the Video In connector does not supply power to the camera. Ensure that your camera is
properly powered via another source.
