PERTICI SPA declines all liability for damages caused during shipment. It is therefore
important to check the state of the packaging at the time of purchase.
4.3 Safety zones and dimensions
Once the machine has been moved to the place of its definitive installation and the packaging
has been removed, proceed with the installation. Take care to leave around the machine the
necessary space for the personnel for normal operations and for inspection and maintenance
works.

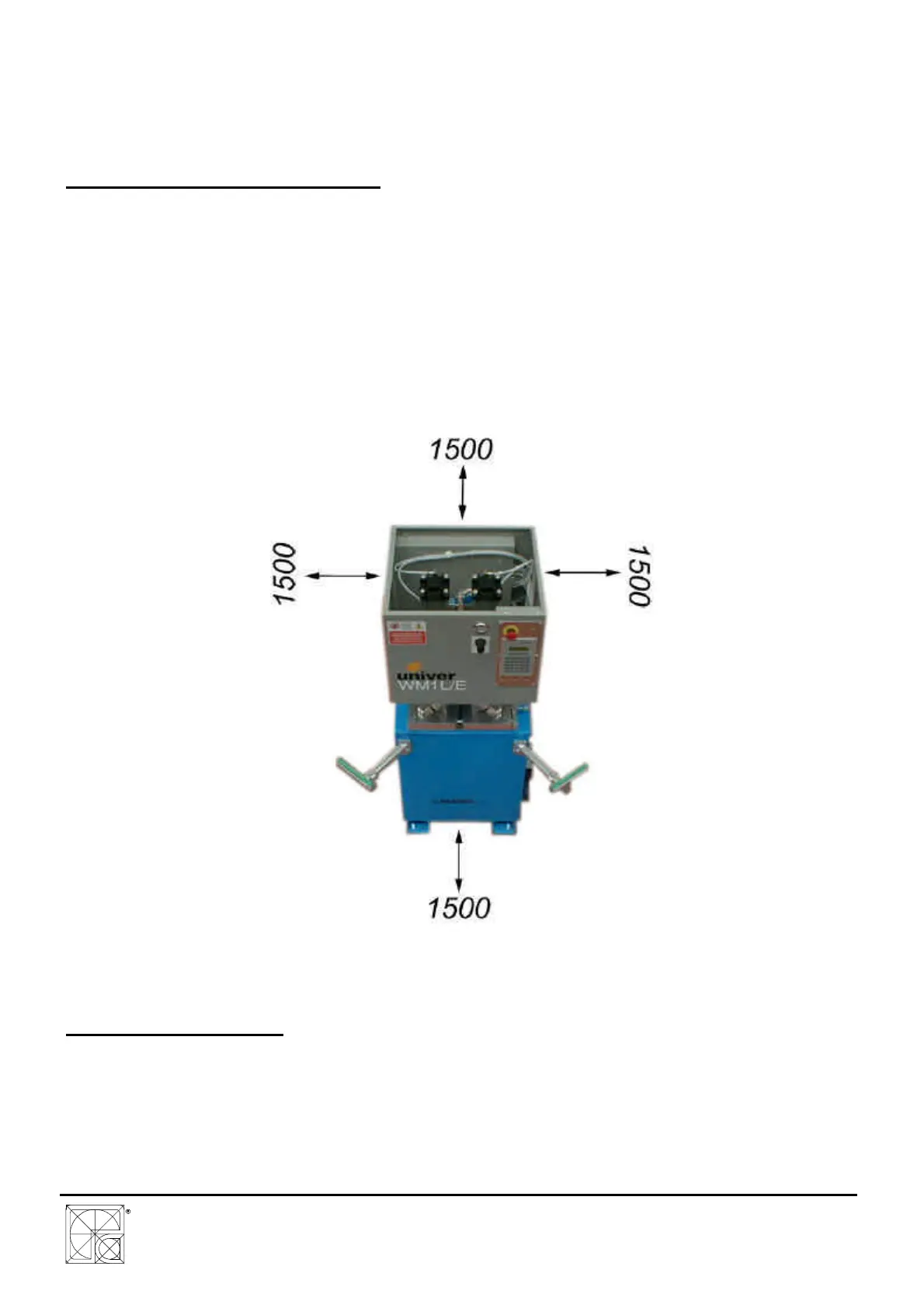

The space required to work correctly is of 150 cm all around the machine (DWG. A1.10).
In the following picture are indicated the safety areas around the machine where the utmost
care must be taken to people or objects, which may constitute obstacles or hazards during
work.
DWG. A1.10
4.4 Setting up for work
Levelling. Position a spirit level on the frame support surface and verify that the machine is
levelled both lengthwise and crosswise. To level the machine act as follows:
- Screw or unscrew the four vibration-damping feet 1 (DWG. A1.11) by inserting the 12 mm
key, supplied with the machine, into point (A).
- Tighten the four nuts 2 (DWG. A1.11) using the 19 mm key supplied with the machine.
