Instruction manual for use and maintenance
for WM1L/S WM1L/S-M WM1L/E Single
head machines
File: 1927.doc - 25/01/02 11:55
19
- a protective device installed upstream of the machine that is set in such a way as to
guarantee the automatic breaking of the circuit in accordance with the above stated
specifications.
We recommend hooking up with an EEC-standard interlocked plug and socket with safety
fuses, of suitable capacity for the machine power input (see ratings plate).
We recommend the use of fuses suitable for the motor start (AM).
Information about the machine's electrical system are given in Enclosure 3.
The motor has electrical overload protection and cuts out automatically in case of overheating.
Allow the motor to cool and act on the thermal relay SM1 reset button.
5. USE
5.1 Checks before use
The following precautions must be taken each time before using the machine:
- Check that the work surface is free of waste materials and cuttings.
- Check that the protecting teflon of the welding plate has not been damaged or is dirty,
otherwise consult the chapter concerning maintenance for the teflon cleaning and replacement.
- Check that the pressure on the gauge reads 7/8 (bar/atm)
- Check the electrical connection of the plug to the interlocked socket.
- Check that the emergency button (PE) is not engaged.
5.2 Description of controls

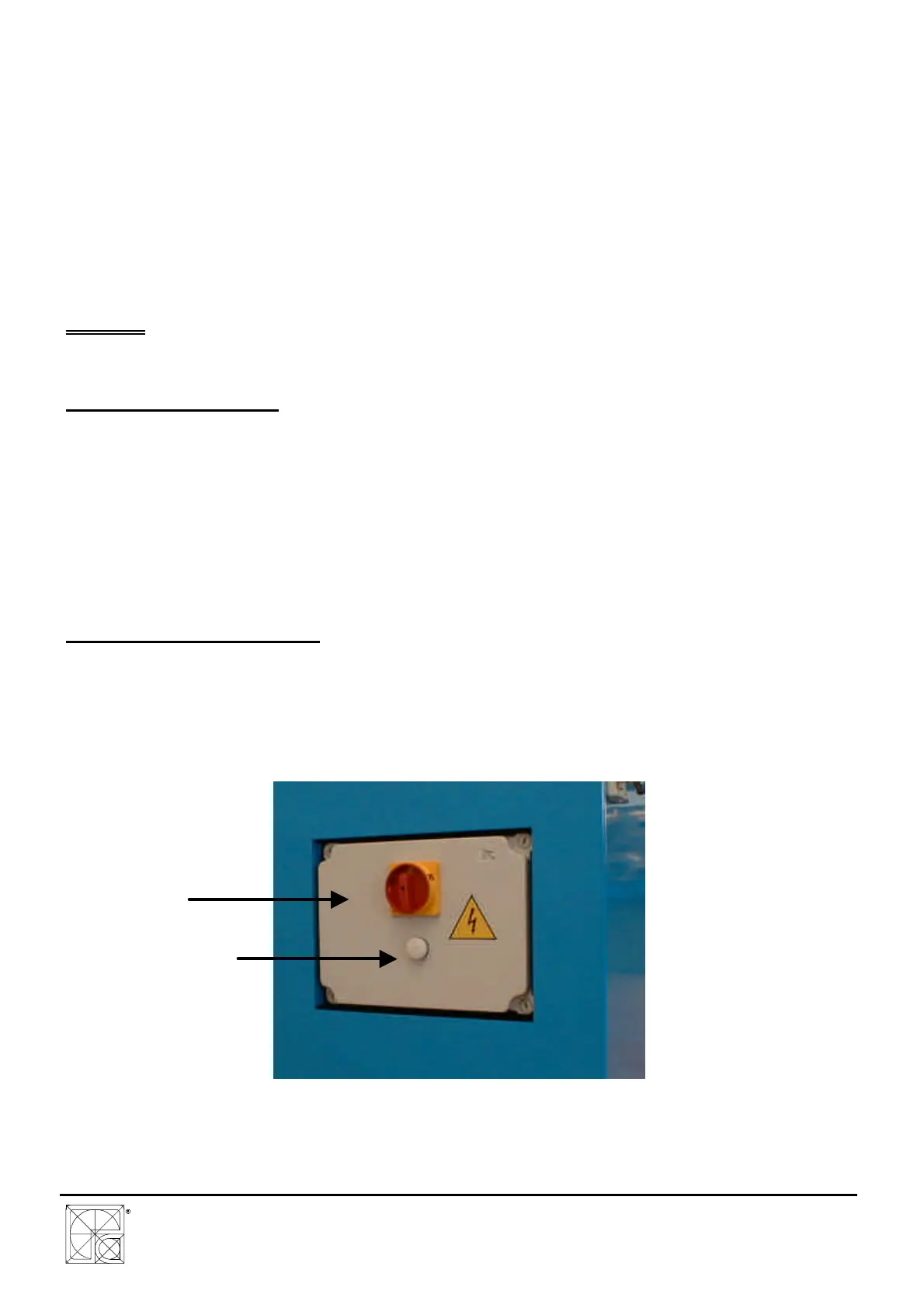

SIGNALLING LIGHT indicating that the POWER IS ON (DWG. A1.15)
When this signalling lamp is on, means that the machine is energised (main switch turned to
position “1”).
DWG. A1.15
MAIN SECTION
SWITCH
POWER SIGN.
LAMP
