Instruction manual for use and maintenance
for WM1L/S WM1L/S-M WM1L/E Single
head machines
File: 1927.doc - 25/01/02 11:55
17
- Carry out a working cycle to the locking of the two profiles, one on the left surface and the
other one on the right surface of the machine.
- Verify that the plastic parts of the profile holding arms (3), are on the same level of the inferior
face of the profiles.
- In case the plastic parts are higher or lower than the inferior face of the profile, proceed to
regulate the height, partially loosening screws (4), which fix the profile holding supports on the
base and moving them upwards or downwards (2).
- Find the correct position and tighten the screws (4) completely.

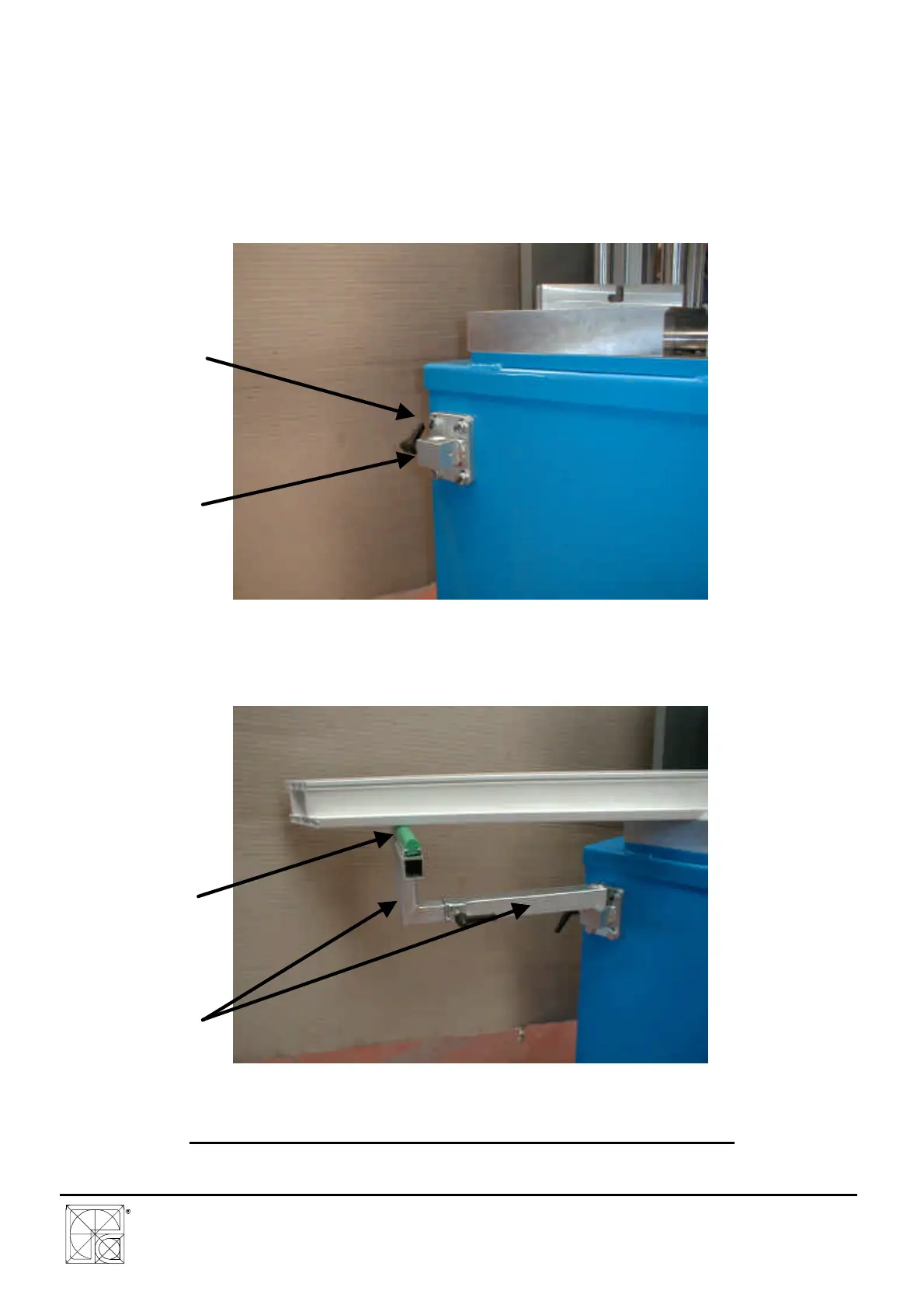

DWG.A1.13
DWG.A1.14
ATTENTION: CARRY OUT THIS OPERATION ON BOTH SIDES
