The company PERTICI s.p.a. will give or can give the necessary material to obtain the
following mechanical welding parameters:
WM1L/S – WM1L/S-M
- Reduction of the welded profile length 6 mm (for each welded side)
- Limitation of welding seal 2 mm (upon request 1 mm. – 0.2 mm)
WM1L/E
- Reduction of the welded profile length 3 mm (for each welded side)
- Limitation of welding seal 2 mm (upon request 1 mm)

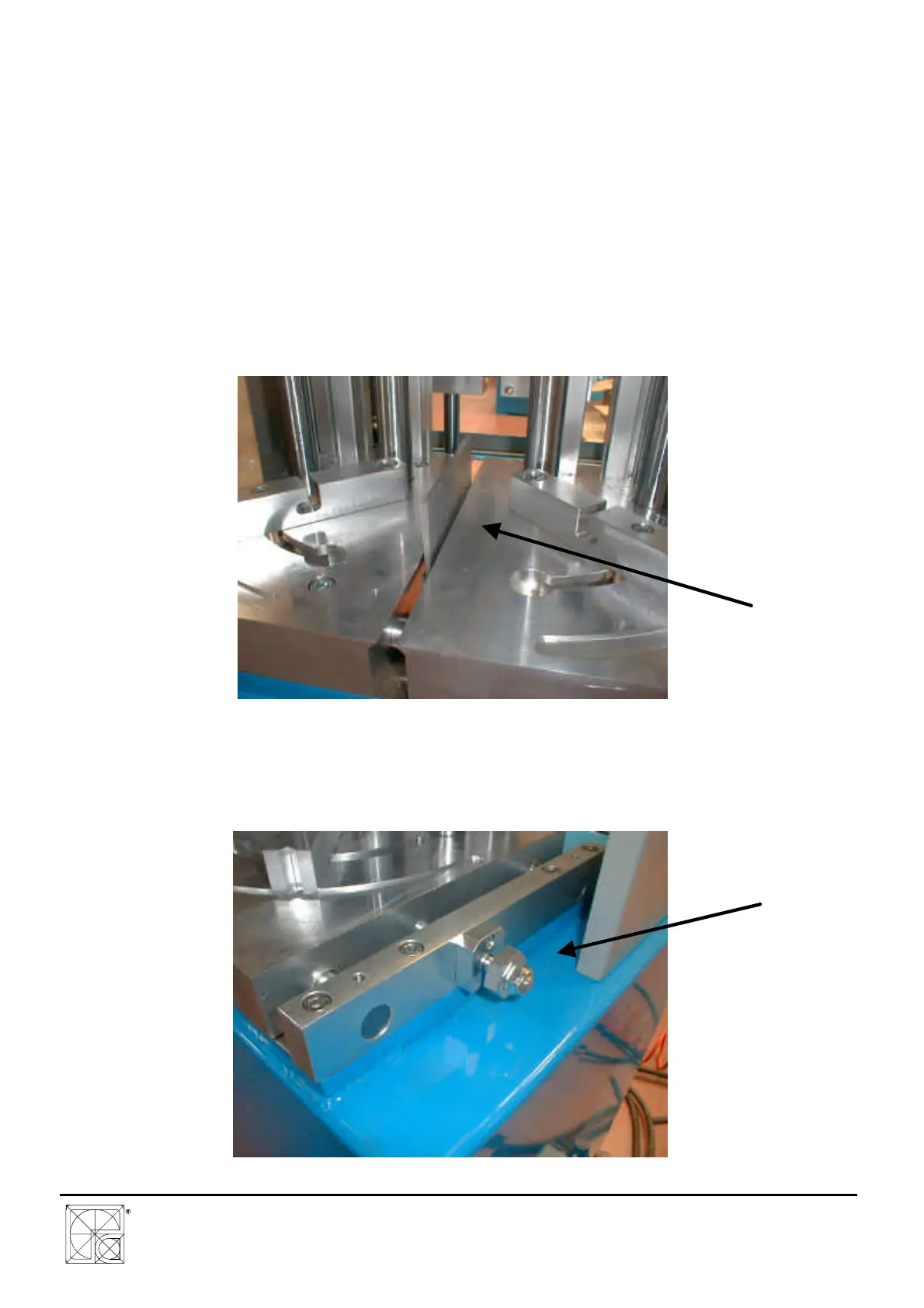

To modify the setting of the mechanical welding parameters, it is necessary to replace the
following components:
- Positioner’s plate (1)
DWG.A1.23
- Mechanical stop length for welding (2)
DWG.A1.24
1
2
