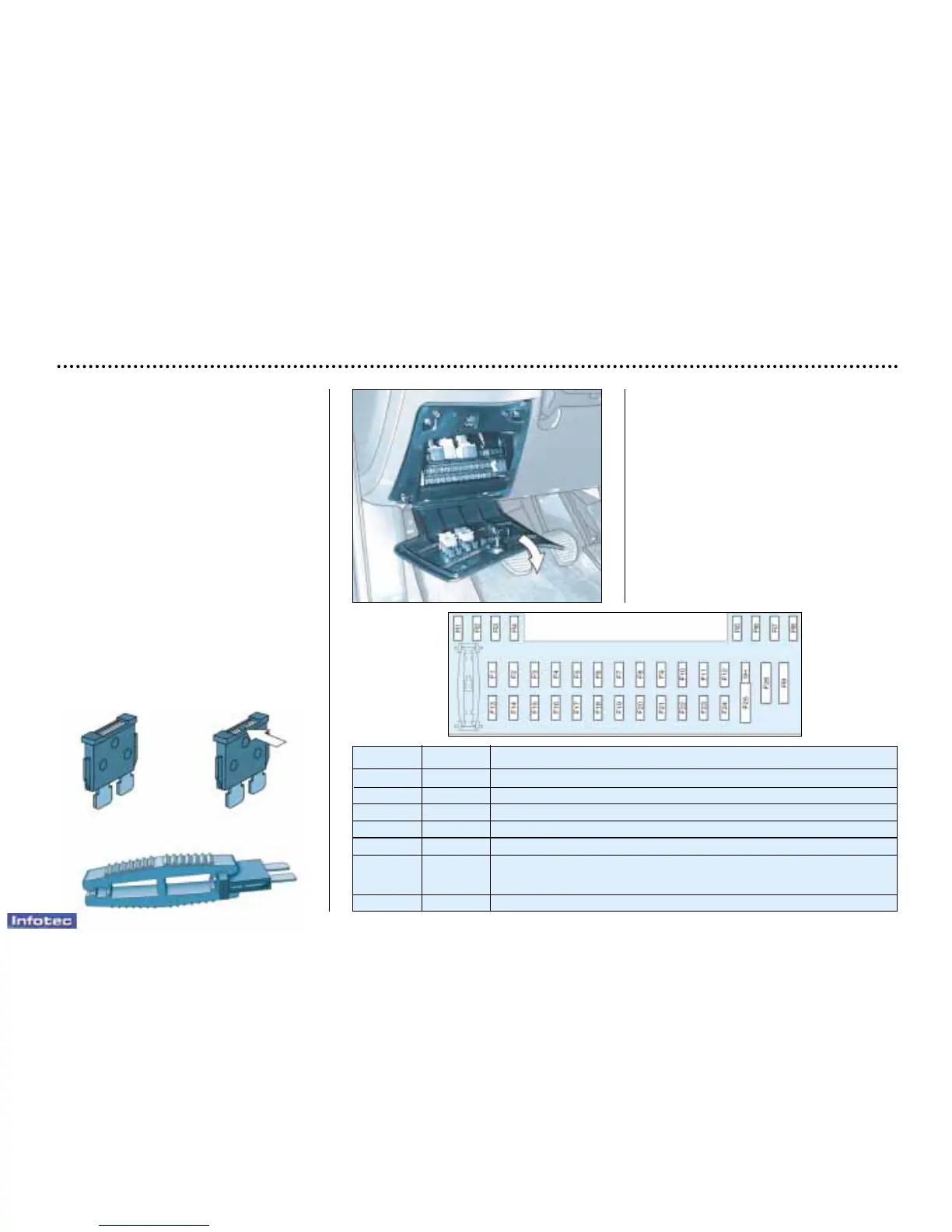

CHANGING A FUSE
The fuse boxes are located under
the fascia panel and in the engine
compartment.
☞ The replacement fuses and pliers
A are fixed to the inside of the fas-
cia panel fuse box cover.
Removing and fitting a fuse
Before changing a fuse, you must
establish the cause of the fault and
have it put right.
☞ Use pliers A.
Always change a faulty fuse for
one of the same rating.
Fascia panel fuse box
☞ Loosen the screw a quarter turn
with a coin and tilt the cover to
access the fuses.
Fuse no. Rating Functions
R Replacement fuses.
1 30A Locking / deadlocking.
2 20A Radio amplifier.
3 30A Windscreen wash.
4 30A Rear window switches on rear doors.
5 15A Electronic immobiliser, monochrome screen or colour screen
control unit, instrument panel, air conditioning control unit,
audio system / telephone.
6 10A Rear right brake light.
