40
39

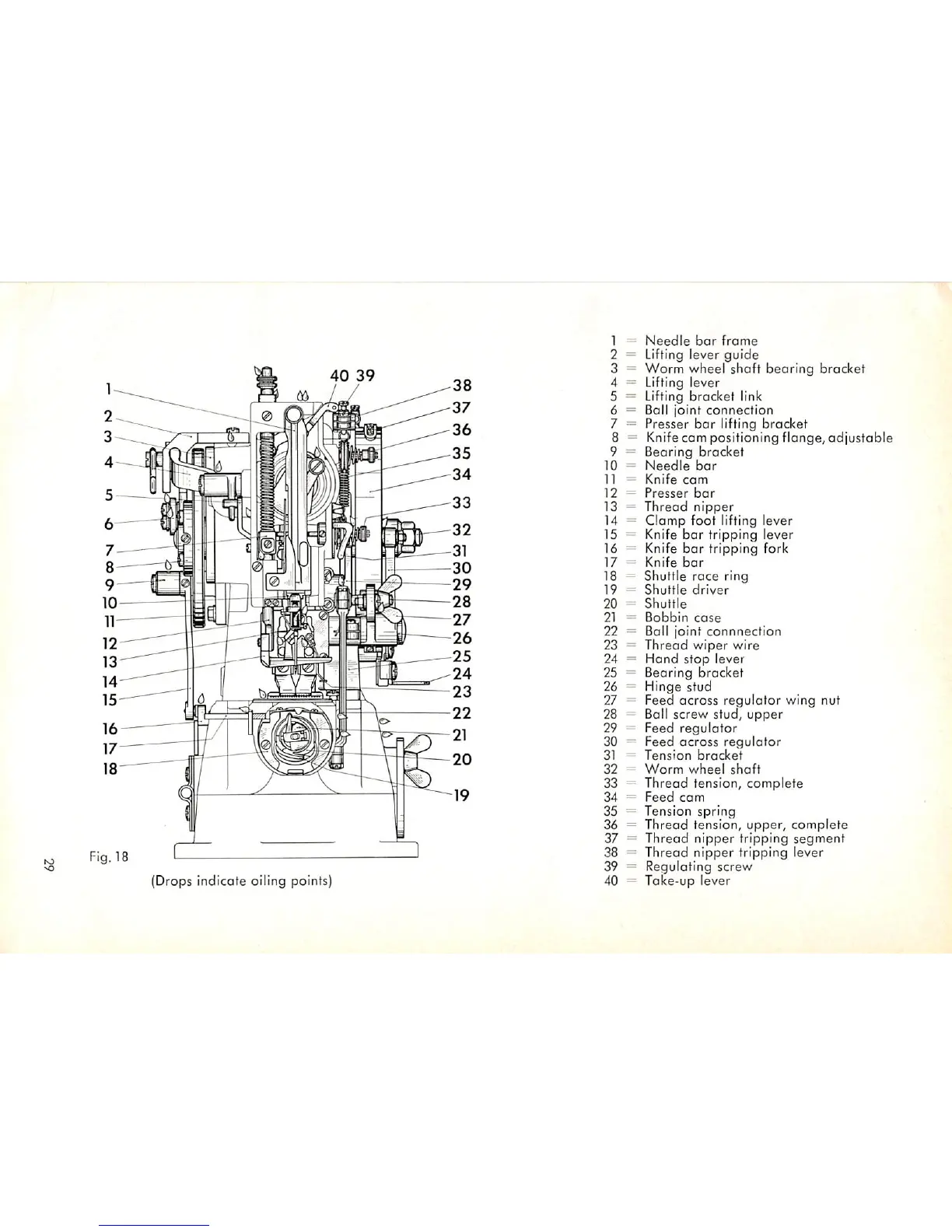

Fig. 18
(Drops indicate oiling points]
1
=
Needle
bar
frame
2
=
Lifting lever
guide
3
=
Worm
wheel
shaft
bearing
bracket
-^38
4
-
Lifting lever
5
Lifting
bracket
link
-37
6
----
Boll
joint
connection
-36
7
Presser
bar
lifting
bracket
8
=
Knife cam positioning flange,
adjustable
-35
9
=
Bearing
bracket
10
=
Needle
bar
"34
11
Knife
cam
"33
12
Presser
bar
13
Thread
nipper
-32
14
Clamp
foot
lifting lever
15
--
Knife
bar
tripping lever
-31
16
--
Knife
bar
tripping
fork
30
-29
17
=
Knife
bar
18
Shuttle
race
ring
19
Shuttle
driver
-28
20
Shuttle
-27
21
-
Bobbin
case
-26
22
Ball joint
connnection
23
Thread
wiper
wire
-25
24
Hand
stop
lever
-24
25
Bearing
bracket
-23
26
Hinge stud
27
-
Feed
across
regulator
wing nut
-22
28
=
Ball screw stud,
upper
-21
29
--
Feed
regulator
30
Feed
across
regulator
-20
31
-
Tension
bracket
32
33
Worm
wheel
shaft
Thread tension, complete
-19
34
=
Feed
cam
35
=
Tension
spring
36
=
Thread
tension,
upper,
complete
37
Thread
nipper
tripping
segment
38
-
Thread
nipper
tripping lever
39
=
Regulating screw
40
Take-up
lever
