Pfaff 3371-10 series Adjustment Manual

Adjustment
9

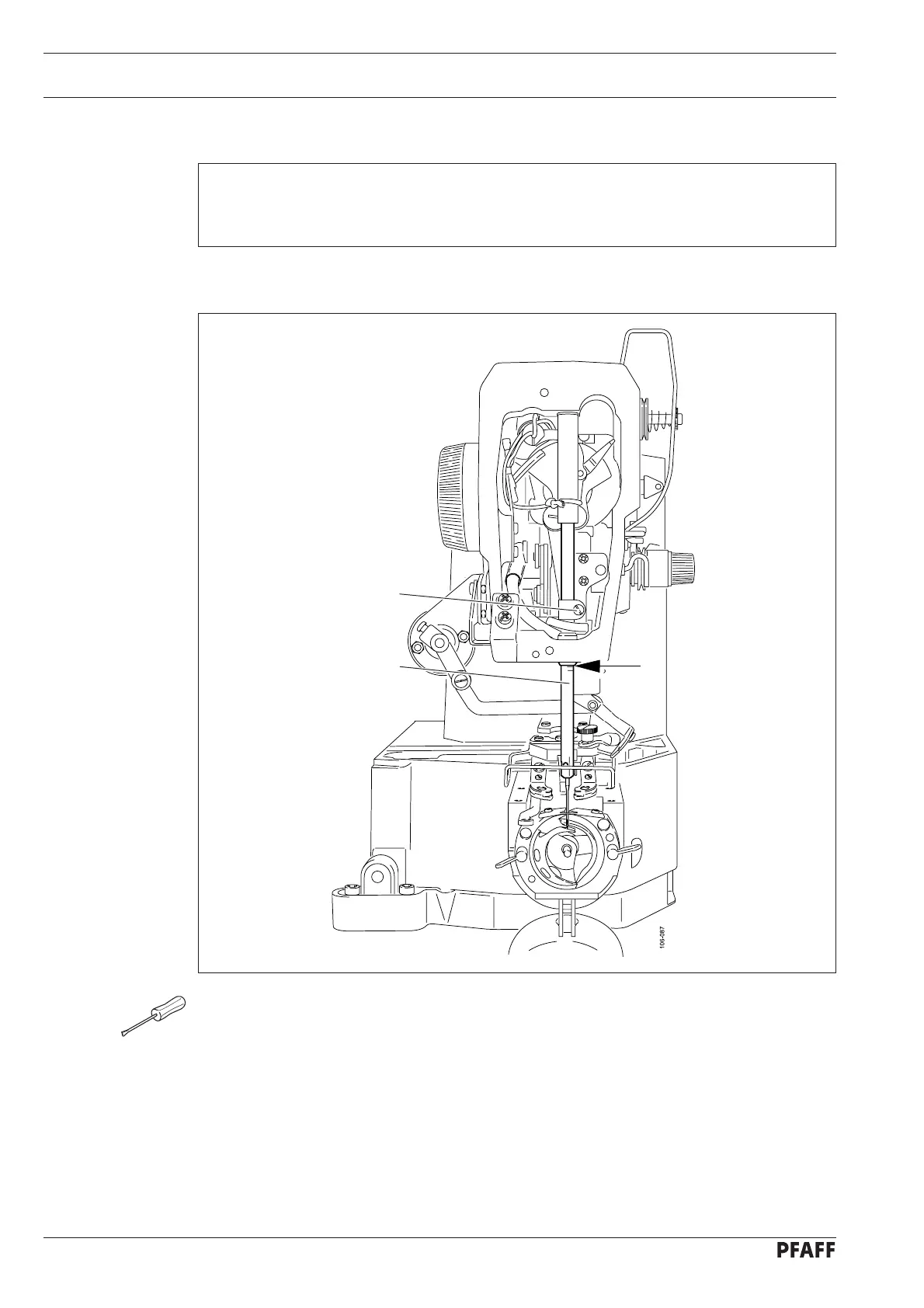

Fig. 15 - 05
1
2
15.10 Needle height
Requirement
With the needle bar in b.d.c., the upper marking on the needle bar 1 should be flush with
the lower edge of the needle bar bush.
● Adjust needle bar 1 (screw 2) in accordance with the requirement.
