Pfaff 3371-10 series

Adjustment
18
Fig. 15 - 14
12 3

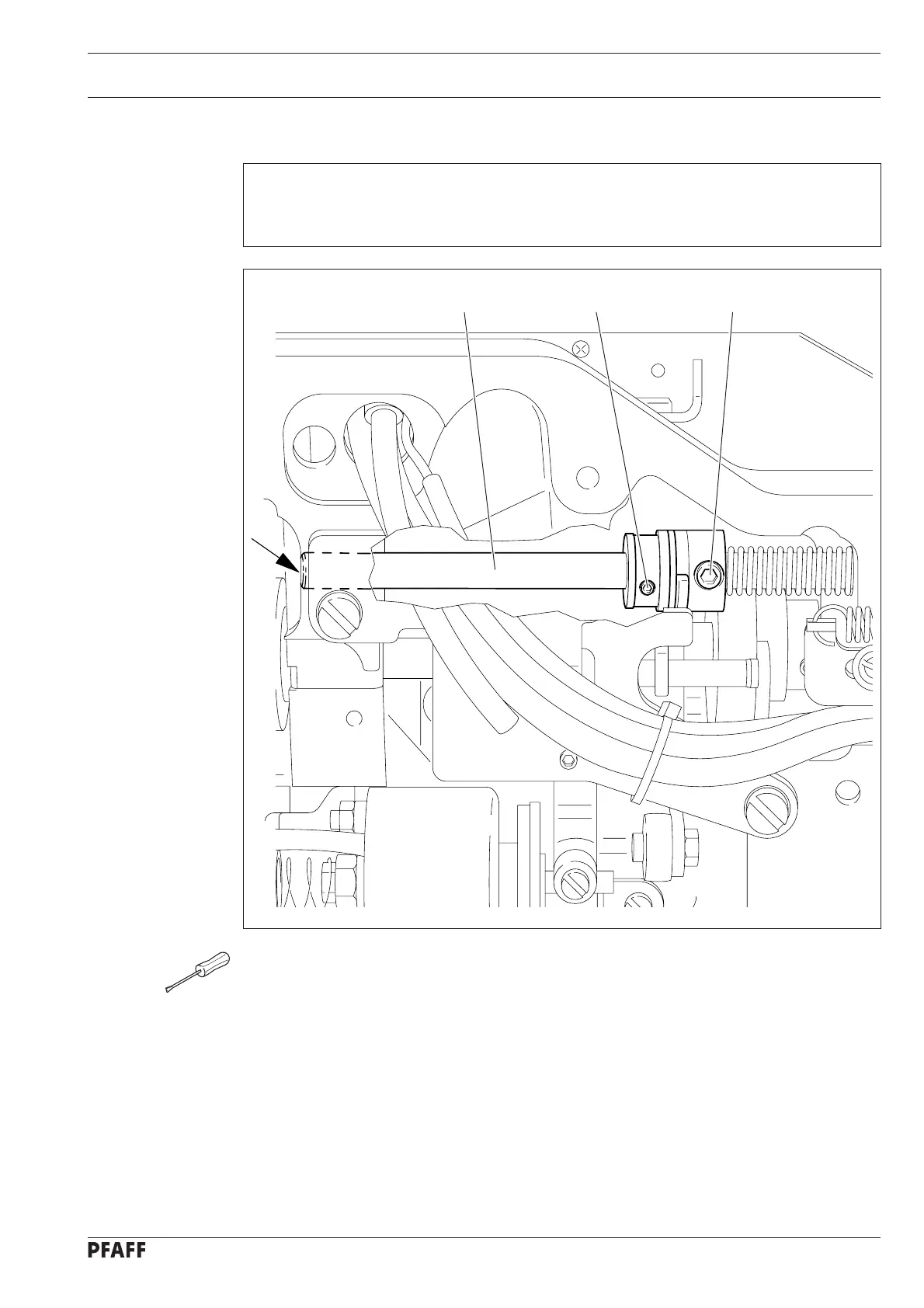

15.19 Position of the drive shaft of the thread trimmer
Requirement
When the thread trimmer is in its basic position, shaft 1 should be flush with the metal
edge of the machine case.
● Move shaft 1 (screws 2 and 3) in accordance with the requirement.
