Adjustment
26
15

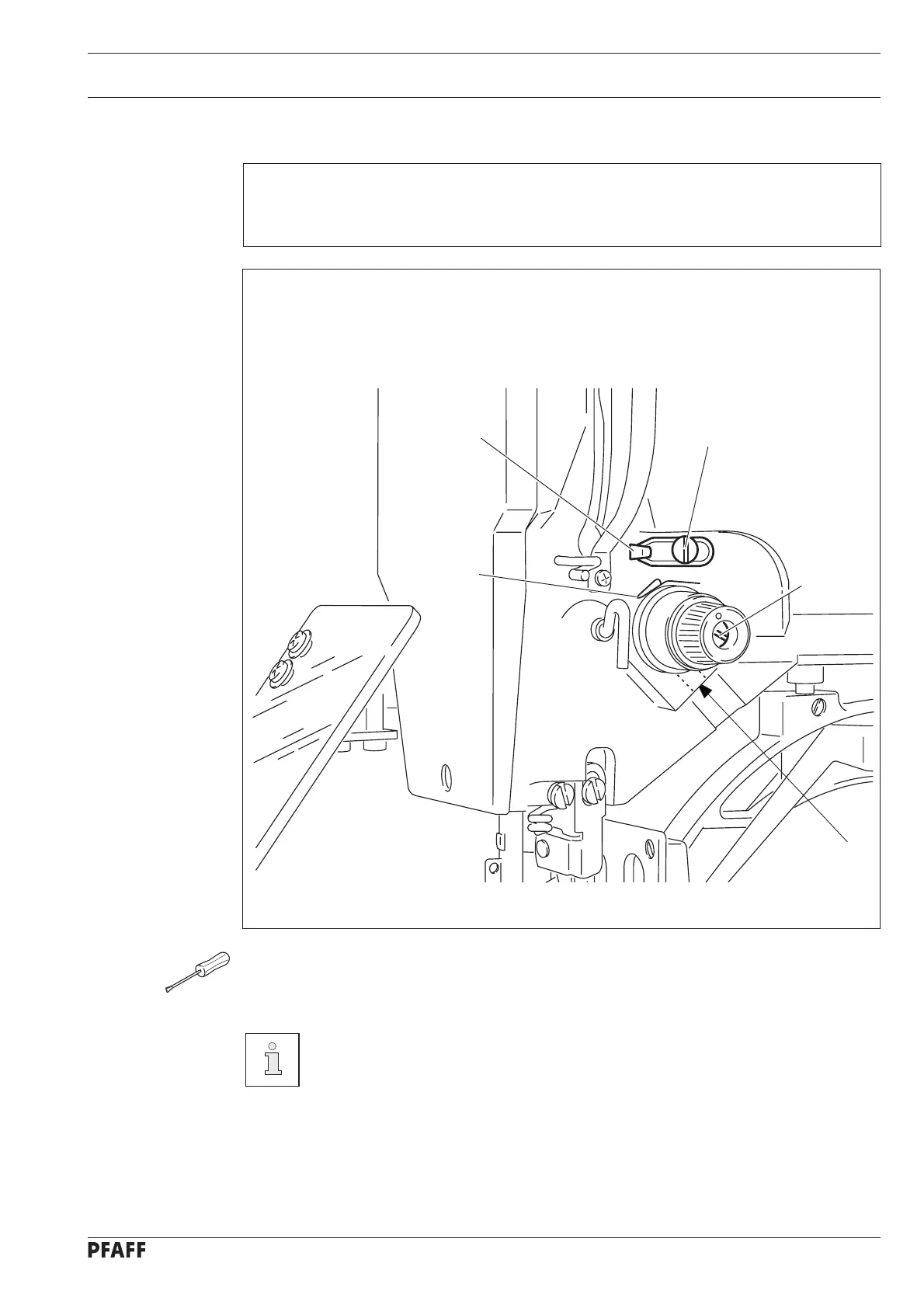

.27 Thread check spring and thread regulator
Requirement
1. The thread check spring 1 should have a 6 – 8 mm stroke.
2. Screw 4 should be positioned in the centre of the slot of thread regulator 3.
● Adjust thread check spring 1 (screw 2) in accordance with requirement 1.
● Move thread regulator 3 (screw 4) in accordance with requirement 2.
Turn pin 5 to adjust the thread spring resistance. All settings of the thread check
spring 1 depend on the material and might have to be corrected to achieve the
desired result.
Fig. 15 - 22
3
1
4
5
