Pfaff 3371-10 series

Adjustment
15
15
.16 Position of the thread wiper
Requirement
When the thread wiper is centred to the needle, its lower edge should be 14 – 15 mm
above the upper edge of the needle plate.
● Bring thread wiper 1 into the appropriate position
● Move thread wiper 1 (screw 2) in accordance with the requirement.

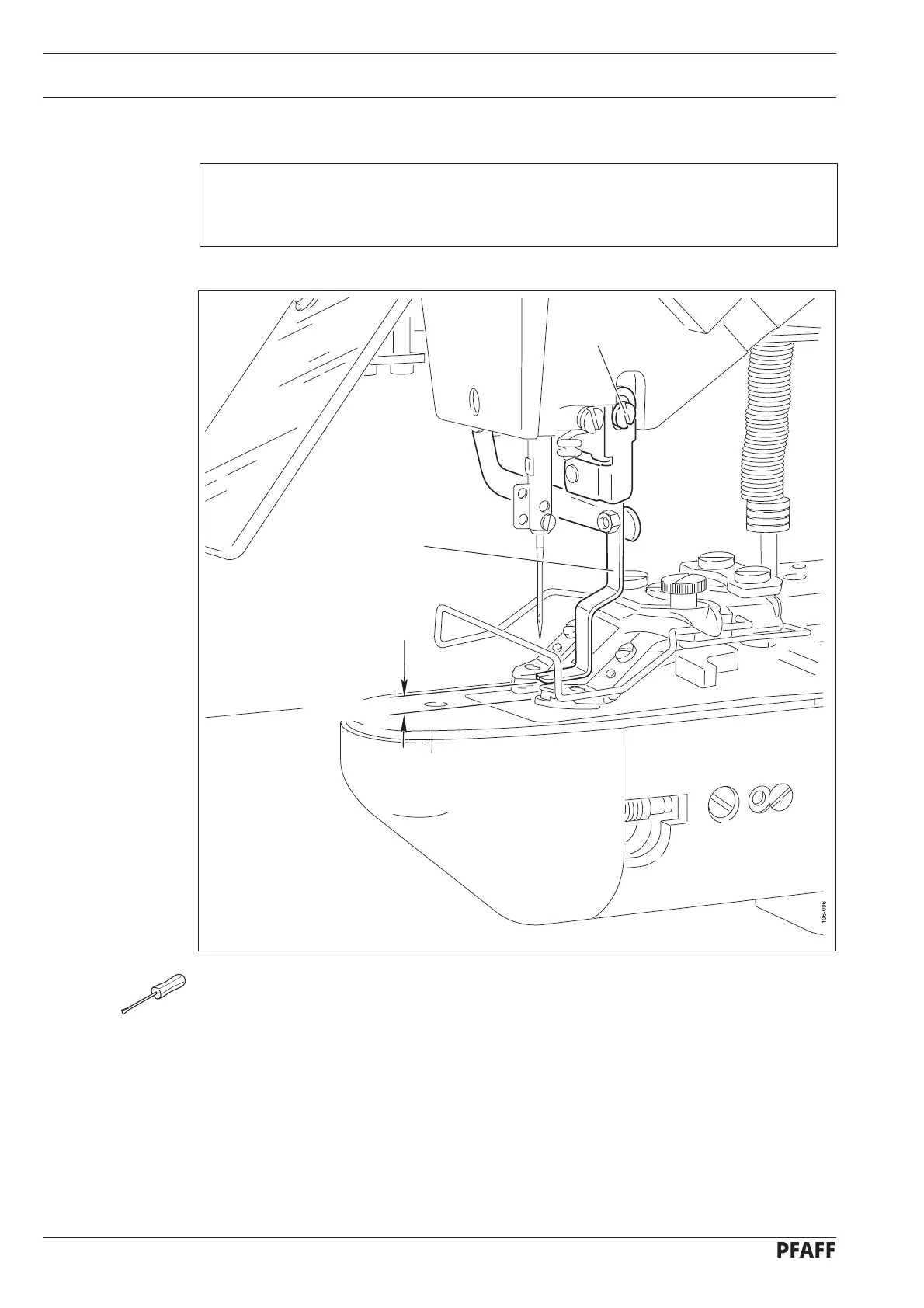

Fig. 15 - 11
15 - 15 mm
2
1
