Adjustment
3
15
.06 Button clamp zero point
Requirement
After the machine ahs been switched on and parameter "608" selected,
1. the needle should be centred to the hole in the adjustment gauge,
2. the switch lugs 2 and 4 should be centred to the respective initiator.
● Remove the button clamp holder and the lower feed plate .
● Screw adjustment gauge 1 (part no. 61-111 637-08) to the button clamp drive unit.
Preliminary adjustment
● Move the button clamp drive unit by hand in accordance with requirement 1.
● Adjust switch lug 2 (screw 3) and switch lug 4 (screw 5) in accordance with requirement 2.
Fine adjustment
● Switch on the machine.
● In the input mode, select parameter "608", see Chapter 11.03 Parameter input in the
instruction manual.
4
5
2
3
1

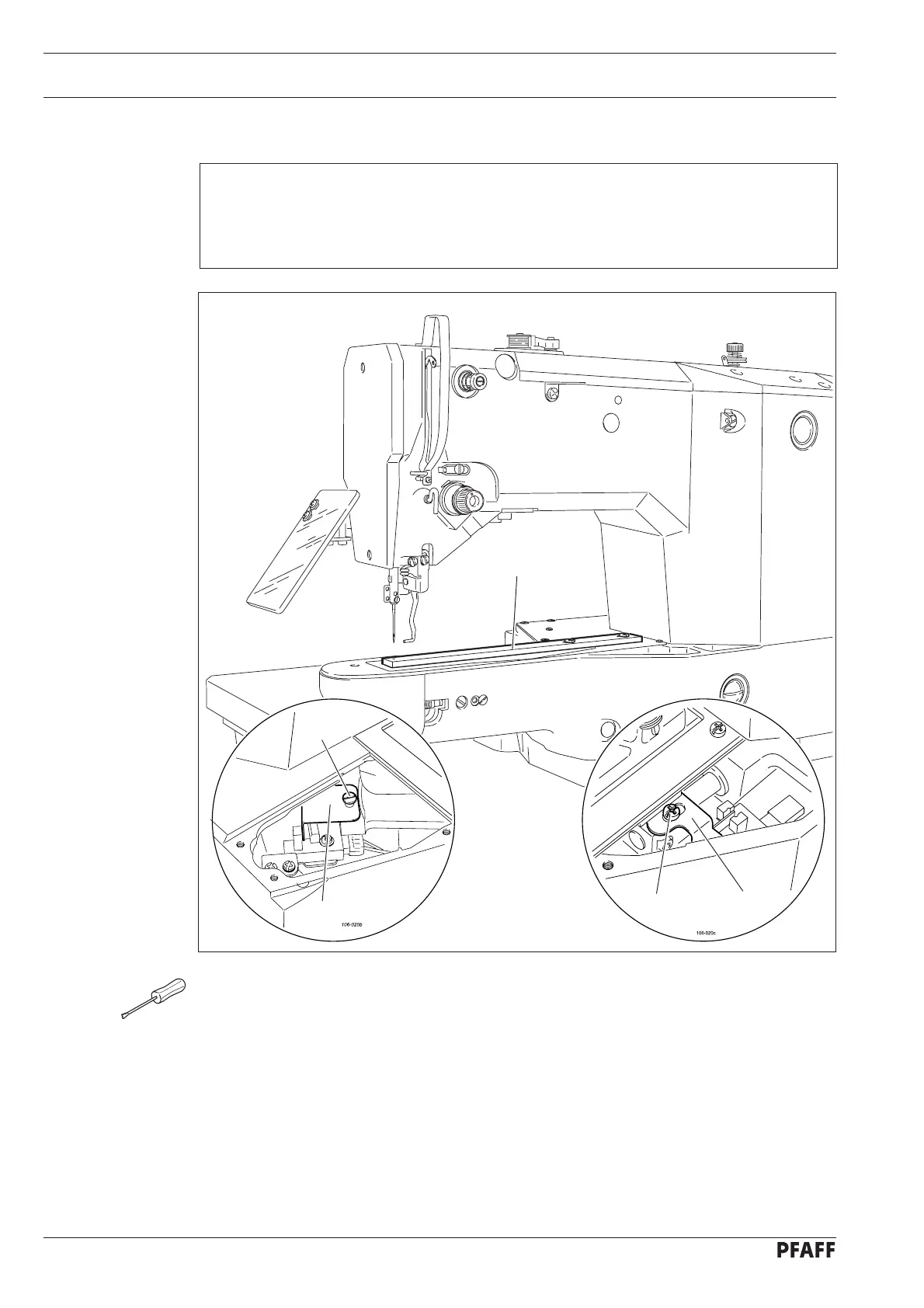

Fig. 15 - 02
