Adjustment
28
15.29 Button clamp initiator
Requirement
When the button clamp is lowered, the initiator should be actuated (input "3" parameter
"601" is in the "Off" position).
● Switch on the machine and press the "TE" key.
● Lower the button clamp by pressing the "tacting forwards" key.
● With the clamp in this position, press the "TE" key.
● In the input mode, select parameter "601", see Chapter 11.03 Parameter input in the
instruction manual.
● Select input "3" with the corresponding +/- key.
● If necessary, enter the access code, see Chapter 11.05.01 Entering the access code in
the instruction manual.
● Move cam switch 1 by hand and check the ON/OFF switch position on the display.
● Adjust support 2 (screws 3) and cam switch 1 (screws 4) in accordance with the requirement.
● Switch off the machine.
4
2
1
2

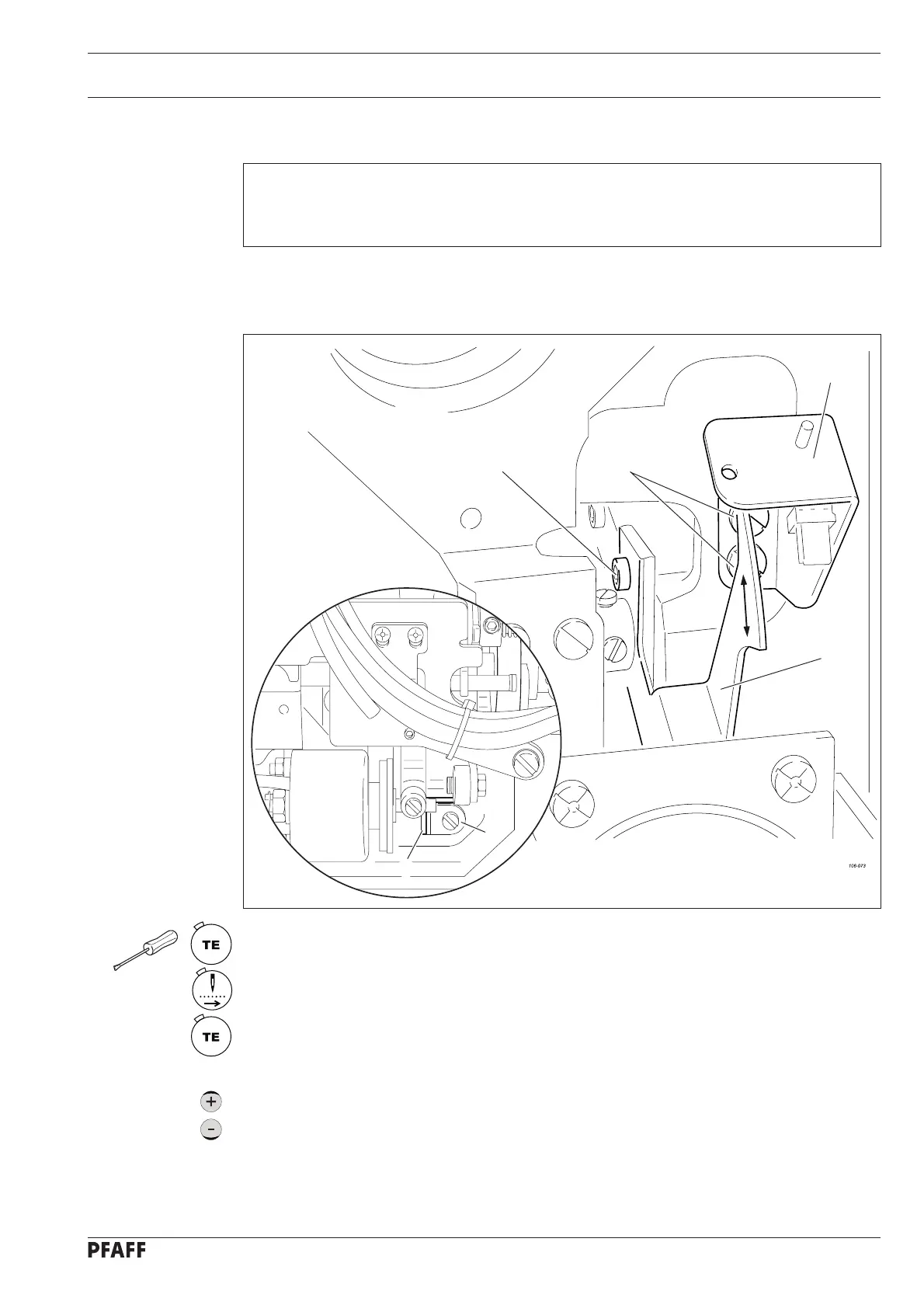

Fig. 15 - 25
6
5
