Adjustment
24

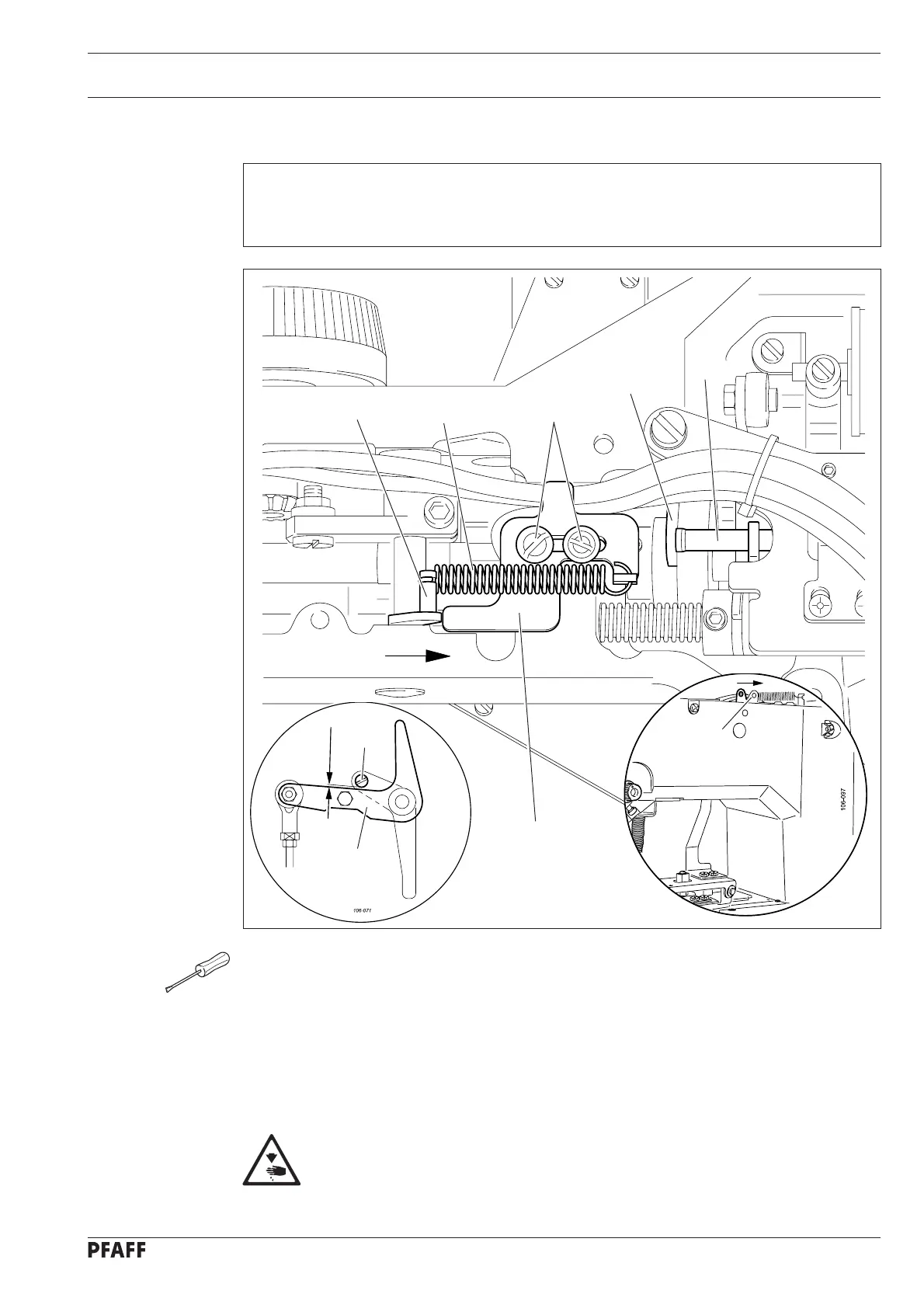

15.25 Position of the release catch
Requirement
When lever 6 is touching release catch 7, there should be a distance of 0.3 mm between
drive lever 5 and pin 1.
● Turn the balance wheel until pin 1 is no longer on the release trip 2.
● Release spring 3 and loosen screws 4.
● In accordance with the requirement, place the feeler gauge between the drive lever 5
and pin 1.
● Push lever 6 lightly in the direction shown by the arrow.
● Move release catch 7 against lever 6 and tighten screws 4.
● Remove the feeler gauge and attach spring 3.
Spring 3 should only be released and attached with suitable tools!
Danger of injury!
6
1
5
0,3 mm
2
3
1
6
4
Fig. 15 - 20
7
