15.07 Aligning the feeder
Regel
The feeder should be aligned in the "X and Y direction” in such a way that the feeder cut-
out does not touch the raised needle hole 3 during sewing.
● Switch on the machine.
● Set the sewing area size (see Chapter 9.07 Adjusting the size of sewing area in the
instruction manual)
● In the input mode, select parameter "610", see Chapter 11.03 Parameter input in the
instruction manual
● If necessary, enter the access code, see Chapter 11.04.01 Entering the access code in
the instruction manual.
● Align feeder 1 (screw 2) so that the raised needle hole 3 is positioned in the centre of the
feeder cutout.
Checking the "Y-direction"
● To check this adjustment, move along the maximum set sewing area size in "Y-
direction" by pressing the corresponding +/- keys (readjust if necessary).
X
Y
1

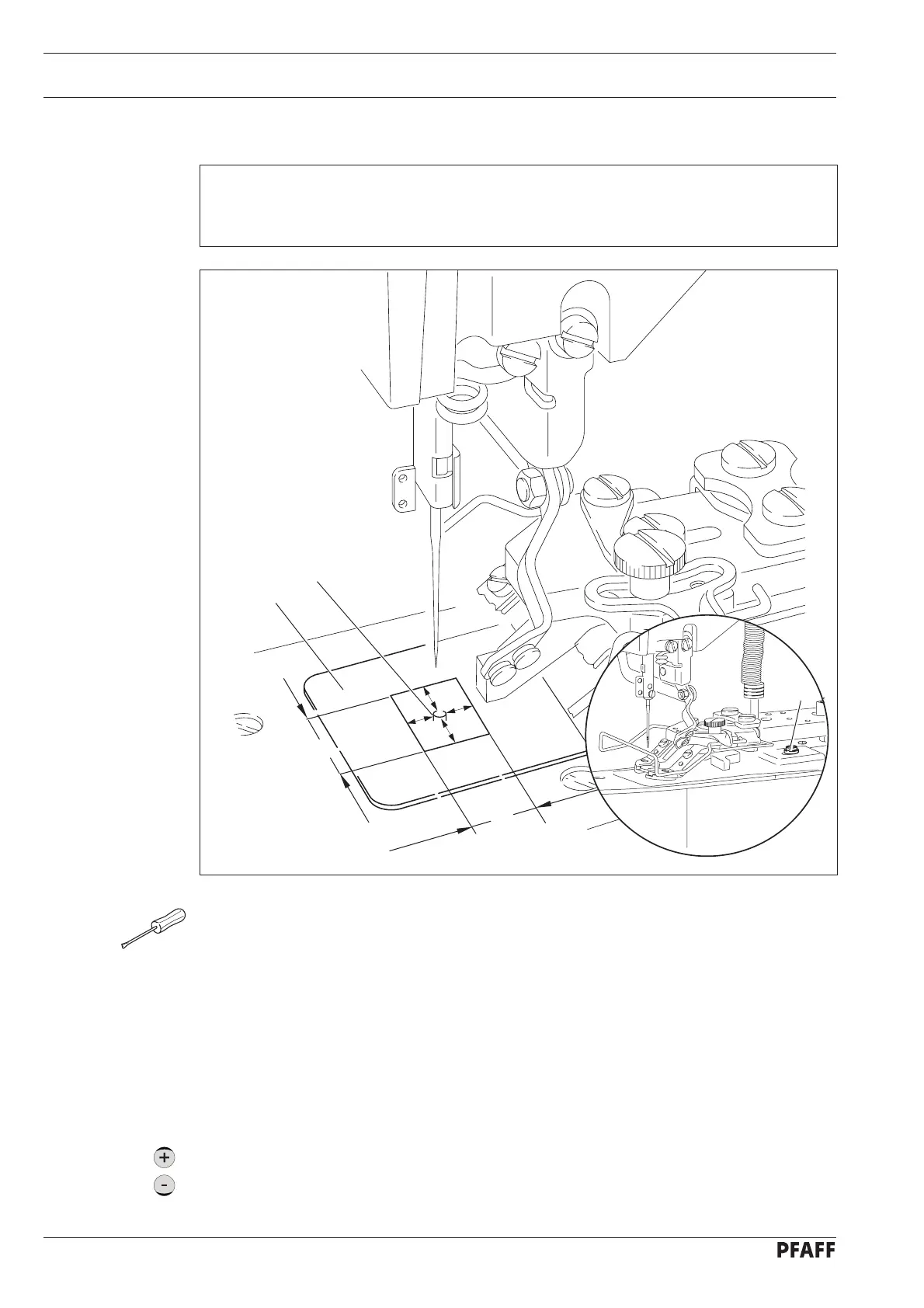

Fig. 15 - 03
2
3
