Pfaff 3371-10 series Adjustment Manual

Adjustment
13
15
.14 Button clamp height
Requirement
The button clamp should be 13 mm above the upper edge of the needle plate.
● Turn lever 1 (nut 2 and screw 3) in accordance with requirement .
After aligning the button clamp, it is imperative to check the position of the
thread wiper, see Chapter 15.16 Position of the thread wiper! Danger of
needle breakage!

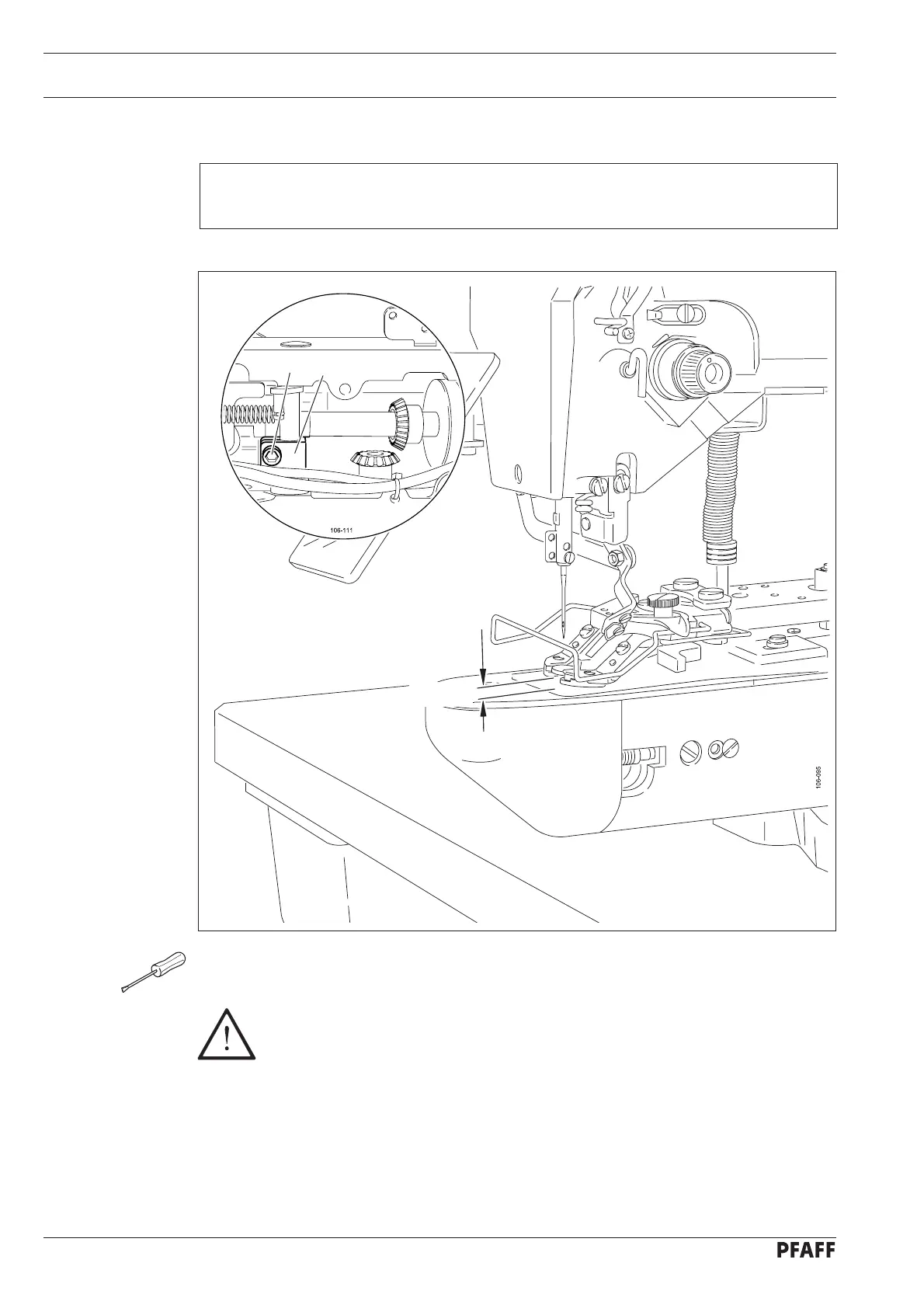

Fig. 15 - 09
1
2
13 mm
