3

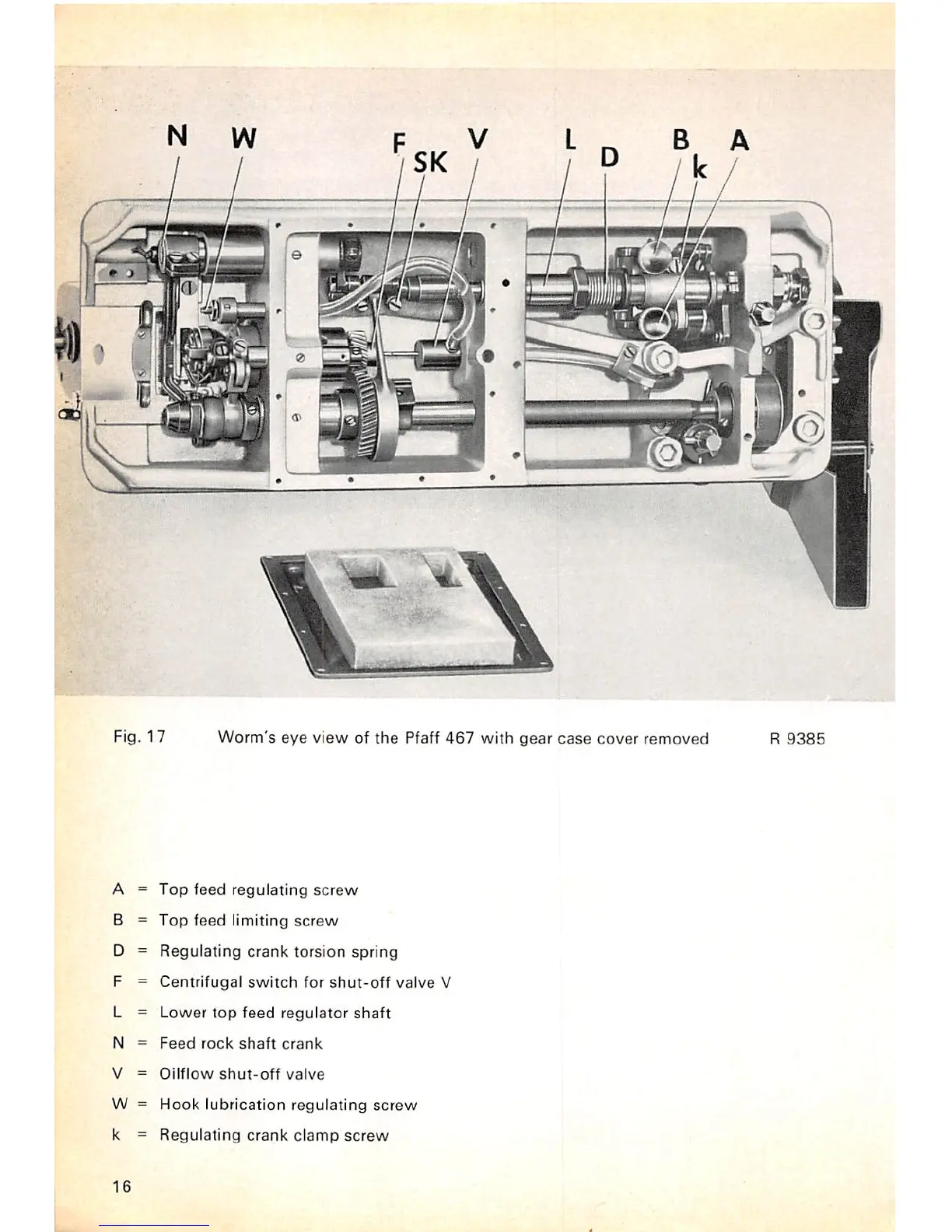

Fig.
17
Worm's
eye
view
of
the
Pfaff
467
with
gear
case
cover
removed
R
9385
A
=
Top
feed
regulating
screw
B
=
Top
feed
limiting
screw
D
=
Regulating
crank
torsion
spring
F
=
Centrifugal
switch
for
shut-off
valve
V
L
=
Lower
top
feed
regulator
shaft
N
=
Feed
rock
shaft
crank
V
=
onflow
shut-off
valve
W
=
Hook
lubrication
regulating
screw
k
=
Regulating
crank
clamp
screw
16
From the library of: Superior Sewing Machine & Supply LLC
15
17
Table of Contents
Foreword
3
Operating Instructions
4
Brief Description
4
Varieties
4
Mounting the V-Belt
5
Test-Running the Machine
6
Remove the Bobbin Case
6
Winding the Bobbin
7
Threading the Bobbin
9
Threading the Needle
10
Drawing up the Bobbin Thread
11
Regulating the Thread Tensions
12
Regulating the Stitch Length
14
Varying the Top Feed Stroke
15
Treadle Operation
17
Lifting the Presser Bar
20
Regulating the Pressure on the Material
21
Selecting the Correct Needle
22
Machine Care
23
Service Instructions
25
The V-Belt Drive
25
Timing the Check Spring
26
Setting the Needle Bar at Correct Height
27
Timing the Sewing Hook
28
Dismantling the Sewing Hook
30
The Mechanical Opener
32
Timing the Mechanical Opener
33
Dismantling the Link Take-Up
34
Changing the Needle Bar
36
Dismantling the Presser Bar
37
Setting the Feed Dog at Correct Height
38
Conversion to Another Subclass
38
Adjusting the Presser Foot
40
Adjusting the Vibrating Presser
41
Correlating Top and Bottom Feeds
42
Adjusting the Vibrating Presser in Sewing Direction
42
Zeroing the Top and Bottom Feeds
43
Timing the Bottom Feed
44
Timing the Top Feed
46
Checking the Top Feed Motion
48
Machine Lubrication
49
Lubricating the Feed Regulating Shaft
49
Sealed-For-Life Anti-Friction Bearings
49
Lubricating Ordinary Ball and Needle Bearings
50
The Pad Lubrication in the Gear Case
50
The Hook Gravity Lubrication System
51
Lubricating the Feed Rock Shaft
53
Trouble Shooting
54
