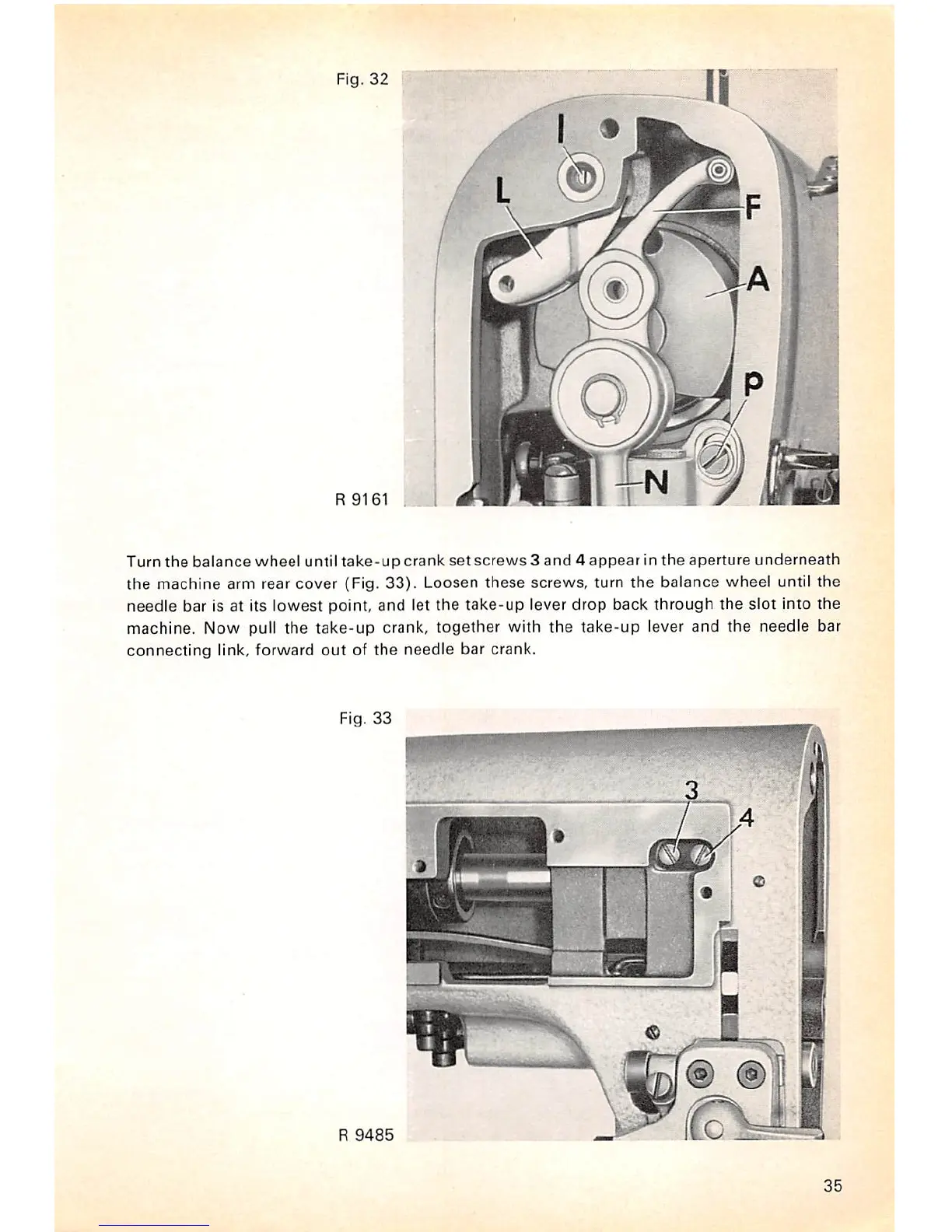

Fig. 32
R 9161
Turn the balance wheel until take-up crank set screws 3 and 4 appear in the aperture underneath
the machine arm rear cover (Fig. 33). Loosen these screws, turn the balance wheel until the
needle bar is at its
lowest point, and let the take-up lever drop back through the slot into the
machine. Now pull the take-up crank, together with the take-up lever and the needle bar
connecting link, forward out of the needle bar crank.
Fig. 33
R 9485
35
