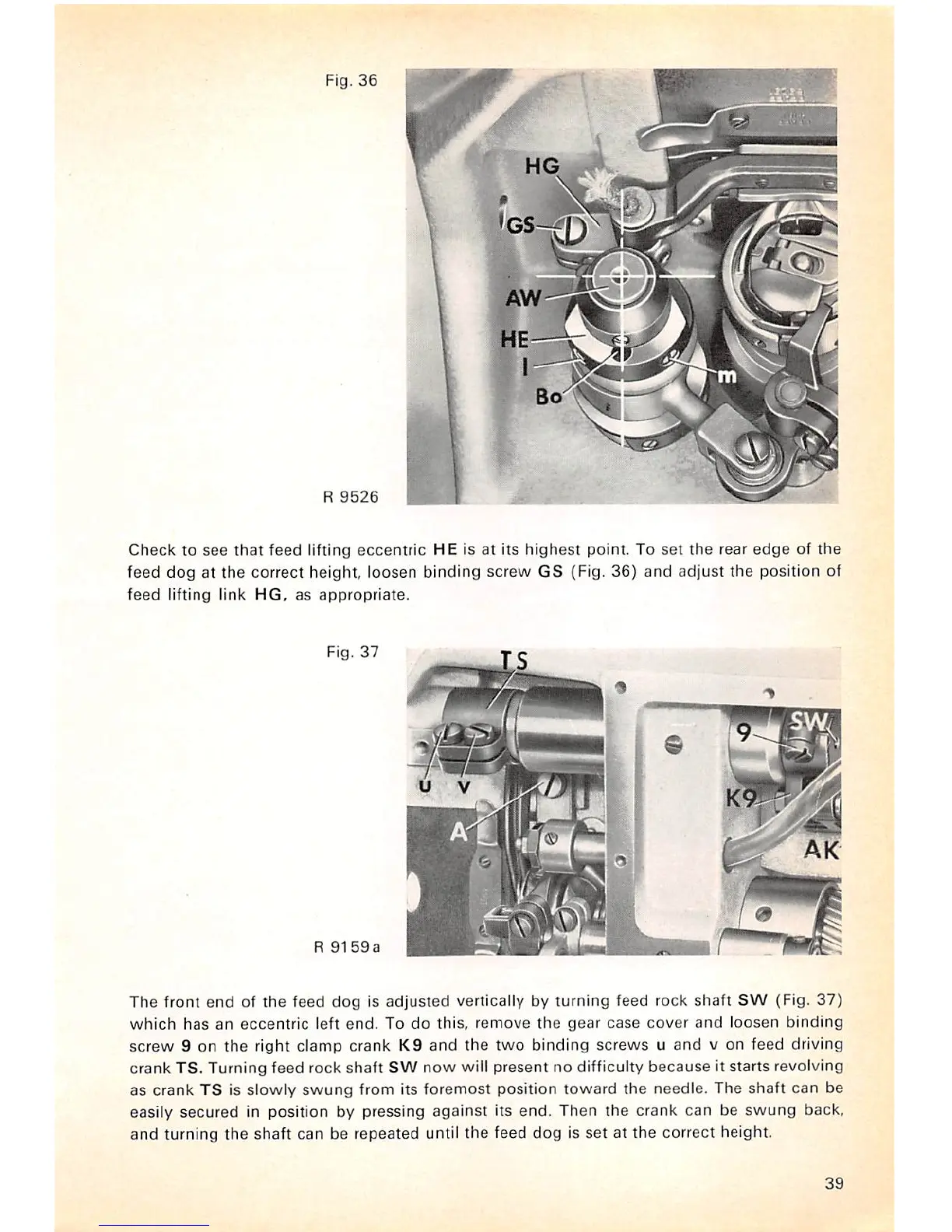

Fig.
36
R
9526
Check
to
see
that
feed
lifting
eccentric
HE is at its
highest
point. To
set
the
rear
edge
of
the
feed
dog
at
the
correct
height,
loosen
binding
screw
GS
(Fig.
36)
and
adjust
the
position
of
feed
lifting link
HG,
as
appropriate.
Fig.
37
R
9159a
The front
end
of
the
feed dog is adjusted vertically by turning feed rock
shaft
SW
(Fig.
37)
which
has
an
eccentric
left
end.
To
do
this,
remove
the
gear
case
cover
and
loosen
binding
screw
9 on the right clamp crank K9
and
the
two binding
screws
u
and
v on feed driving
crank
TS.
Turning feed rock
shaft
SW
now
will present no difficulty
because
it
starts
revolving
as crank TS is slowly
swung
from its foremost position
toward
the
needle. The
shaft
can
be
easily secured in position by pressing against its end. Then the crank can be
swung
back,
and
turning
the
shaft
can
be
repeated
until
the
feed
dog
is
set
at
the
correct
height.
39
