2 - 14
Adjustment
Set feed regulator levers 6, 7
and 8 at "0".
Fit adjustment link 9 onto pins 10.
Rotate the balance wheel and turn crank 11 (screw 12) so that the vibrating presser no
longer moves.
Loosen nut 13.
Move linkage 14 up and down several times, and while doing so adjust lever 16
(screw 15) so that the vibrating presser no longer moves.
Set linkage 14
at the top end of the elongated hole and tighten nut 13.
Set feed regulator levers 6
, ,
, ,
, 7
and 8 at "3".
Move crank 17 axially and radially against crank 18 and tighten screw 1.
Remove adjustment link 9.
Push feed regulator levers 6
, ,
, ,
, 7
and 8 fully to the top.
Set a clearance of 0.5 mm between reverse-feed lever 21 and actuating levers 19
and 20
and tighten screw 3.
Set linkage 14 at the bottom end of the elongated hole (nut 13).

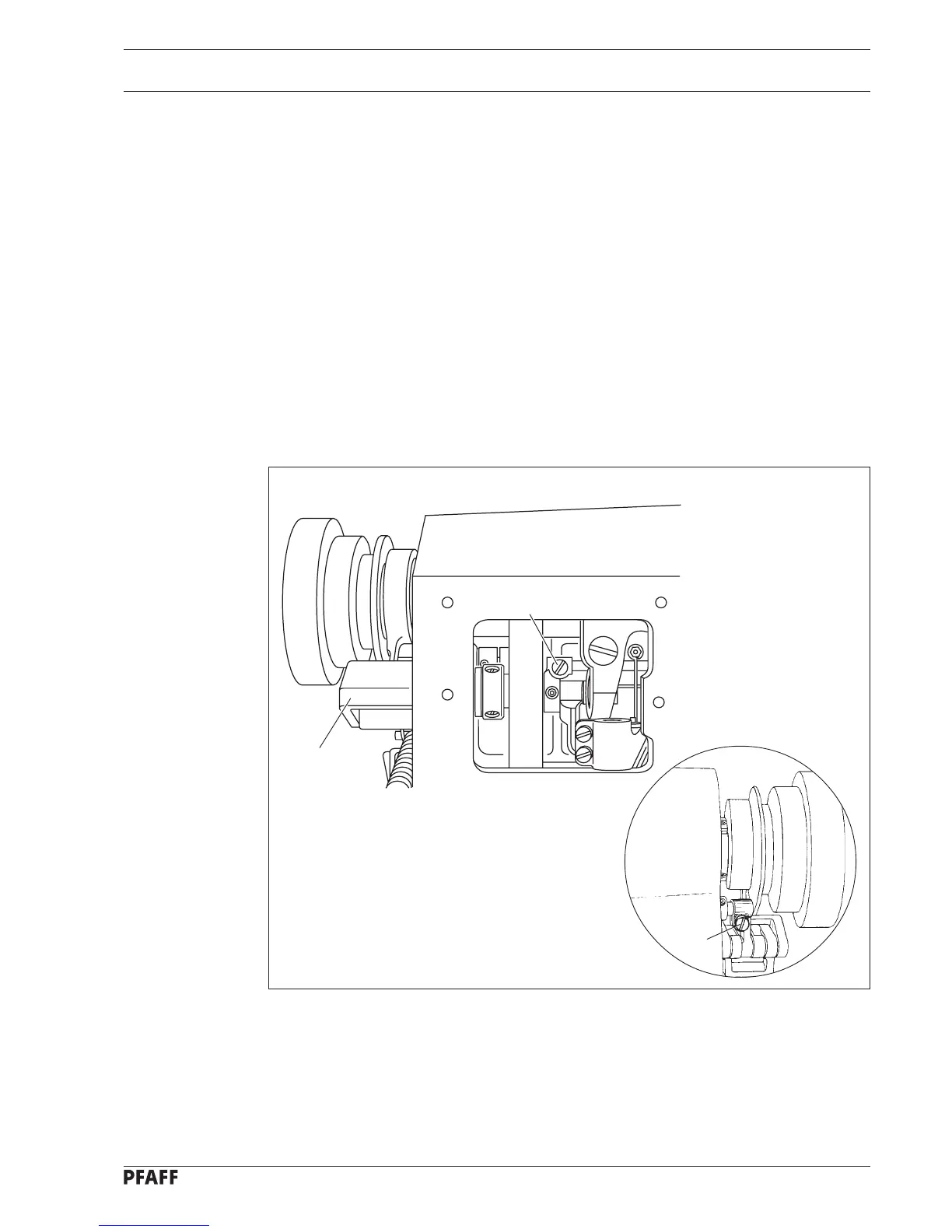

Fig. 2 - 13
